FHX35LG-002 Overview

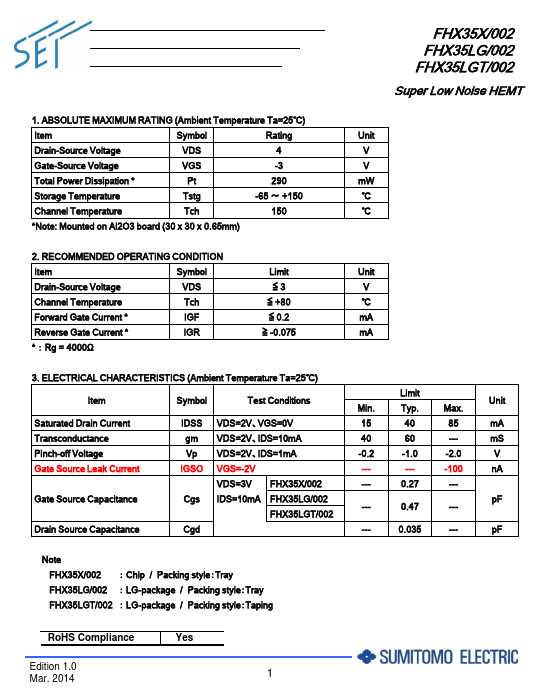

RATING (Ambient Temperature Ta=25℃) Item Symbol Rating Drain-Source Voltage VDS 4 Gate-Source Voltage VGS -3 Total Power Dissipation Pt Storage Temperature Tstg 290 -65 ～ +150 Channel Temperature Tch 150 Note: REMENDED OPERATING CONDITION Item Symbol Limit Unit Drain-Source Voltage VDS ≦3 V Channel Temperature Tch ≦ +80 ℃ Forward Gate Current IGF ≦ 0.2 mA Reverse Gate Current IGR ≧ -0.075 mA ： Rg = 4000Ω 3. (Ambient...
