SGFCF2002S-D Datasheet | SUMITOMO

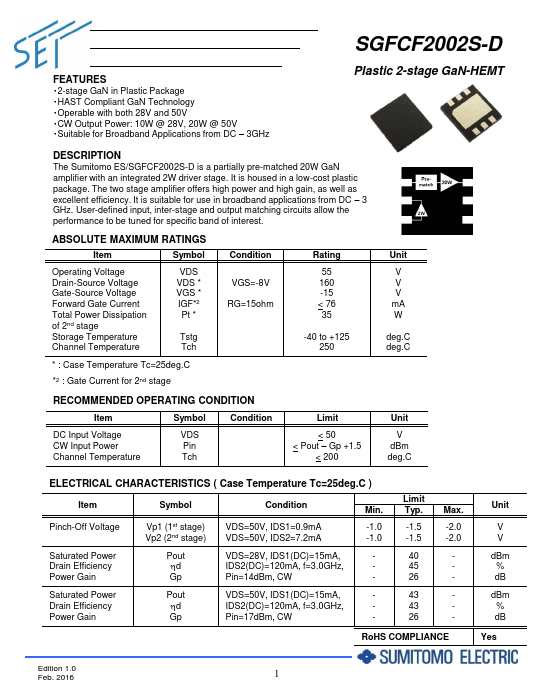

Features - 2-stage GaN in Plastic Package - HAST pliant GaN Technology - Operable with both 28V and 50V - CW Output Power: 10W @ 28V, 20W @ 50V - Suitable for Broadband Applications from DC - 3GHz Plastic 2-stage GaN-HEMT DESCRIPTION The Sumitomo ES/SGFCF2002S-D is a partially pre-matched 20W GaN amplifier with an integrated 2W driver stage. It is housed in a low-cost plastic package. The two stage amplifier offers high power and high gain, as well as excellent efficiency. It is suitable for use in broadband applications from DC - 3 GHz. User-defined input, inter-stage and output matching circuits allow the performance to be tuned for specific band of interest. ABSOLUTE...
