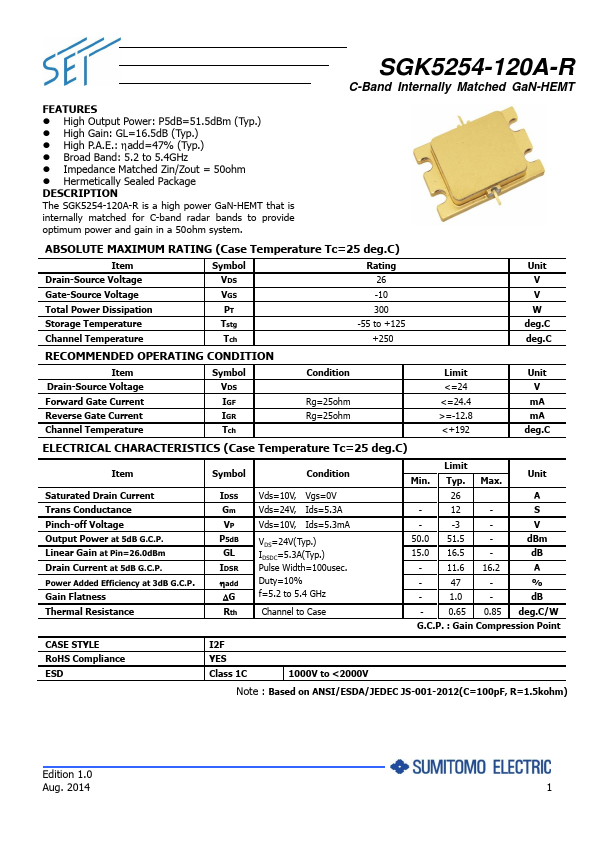

SGK5254-120A-R Overview
The SGK5254-120A-R is a high power GaN-HEMT that is internally matched for C-band radar bands to provide optimum power and gain in a 50ohm system. Linear Gain at Pin=26.0dBm Drain Current at 5dB G.C.P. Power Added Efficiency at 3dB G.C.P.
SGK5254-120A-R Key Features
- High Output Power: P5dB=51.5dBm (Typ.)
- High Gain: GL=16.5dB (Typ.)
- High P.A.E.: add=47% (Typ.)
- Broad Band: 5.2 to 5.4GHz
- Impedance Matched Zin/Zout = 50ohm
- Hermetically Sealed Package DESCRIPTION The SGK5254-120A-R is a high power GaN-HEMT that is
