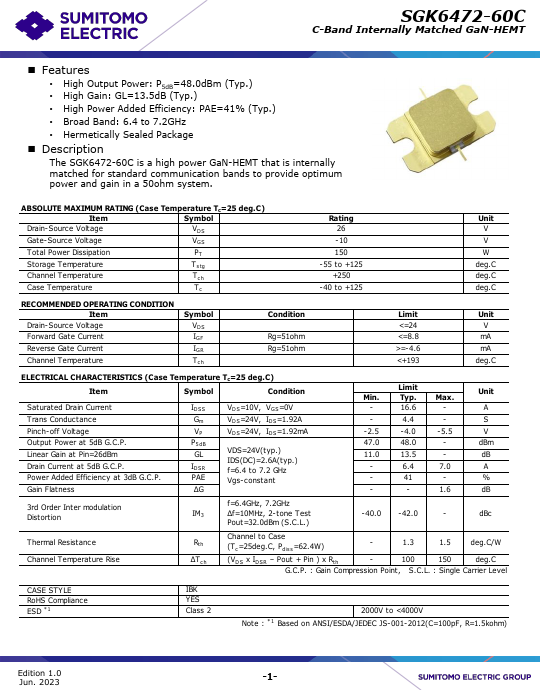

Description
The SGK6472-60C is a high power GaN-HEMT that is internally matched for standard munication bands to provide optimum power and gain in a 50ohm system. ABSOLUTE MAXIMUM RATING (Case Temperature Tc=25 deg.C) Item Symbol Drain-Source Voltage VD S Gate-Source Voltage VG S Total Power Dissipation PT Storage Temperature T s tg Channel Temperature Tch Case Temperature Tc Rating 26 - 10 150 -55 to +125 +250 -40 to +125 Unit V V W deg.C deg.C deg.C REMENDED OPERATING CONDITION Item Drain-Source Voltage Forward Gate Current Reverse Gate Current Channel Temperature Symbol VD S IG F IG R Tch Condition Rg=51ohm Rg=51ohm Limit <=24 <=8.8 >=- 4.6 <+193 Unit V mA mA deg.C Item Symbol Condition Saturated Drain Current Trans Conductance Pinch-off Voltage Output Power at 5dB G.C.P.

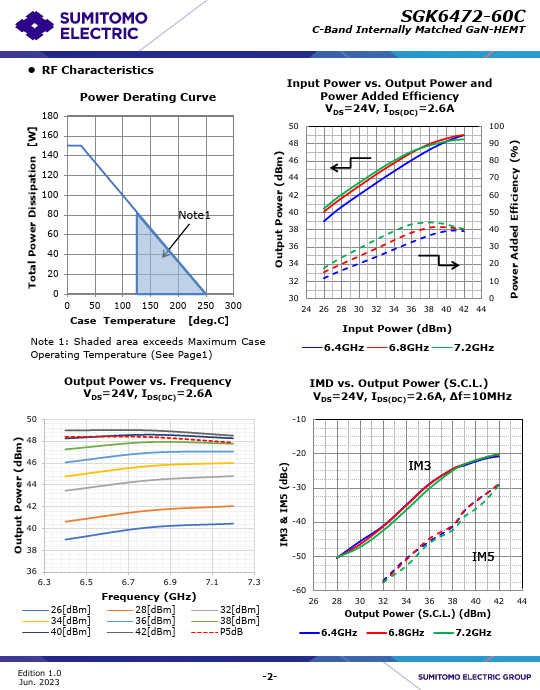

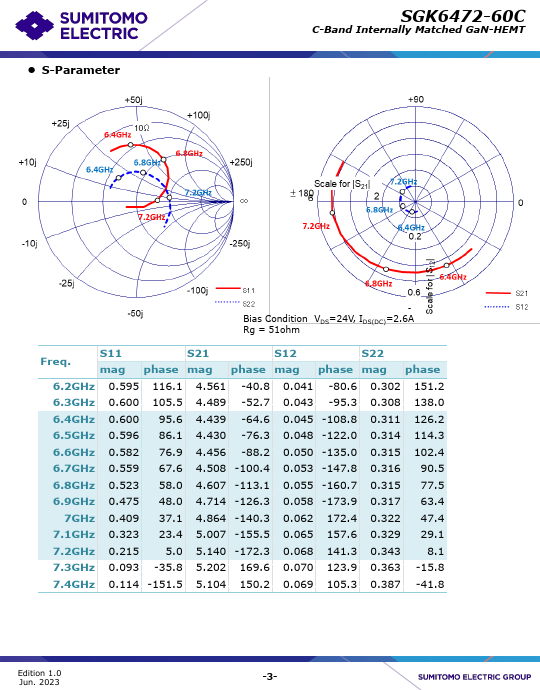

Key Features
- High Output Power: P5dB=48.0dBm (Typ.)
- High Gain: GL=13.5dB (Typ.)
- High Power Added Efficiency: PAE=41% (Typ.)
- Broad Band: 6.4 to 7.2GHz
- Hermetically Sealed Package
