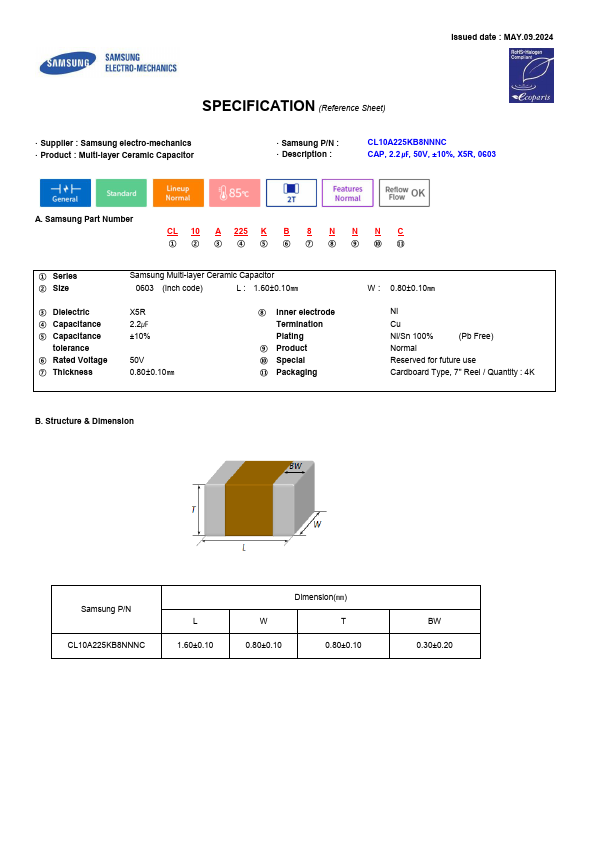

CL10A225KB8NNNC
Description
:
CL10A225KB8NNNC CAP, 2.2㎌, 50V, ±10%, X5R, 0603
A. Samsung Part Number
CL 10 A 225 K B 8 N N N C ①②③④⑤⑥⑦⑧⑨⑩⑪
① Series ② Size
③ Dielectric ④ Capacitance ⑤ Capacitance tolerance ⑥ Rated Voltage ⑦ Thickness
Samsung Multi-layer Ceramic Capacitor
0603 (inch code)
L : 1.60±0.10㎜
X5R 2.2㎌ ±10%
50V 0.80±0.10㎜
⑧ Inner electrode Termination Plating
⑨ Product ⑩ Special ⑪ Packaging
W : 0.80±0.10㎜
Ni
Cu
Ni/Sn 100%
(Pb Free)
Normal
Reserved for future use
Cardboard Type, 7" Reel / Quantity : 4K
B. Structure & Dimension
Samsung P/N CL10A225KB8NNNC
L 1.60±0.10
Dimension(㎜)
0.80±0.10
0.80±0.10
BW 0.30±0.20

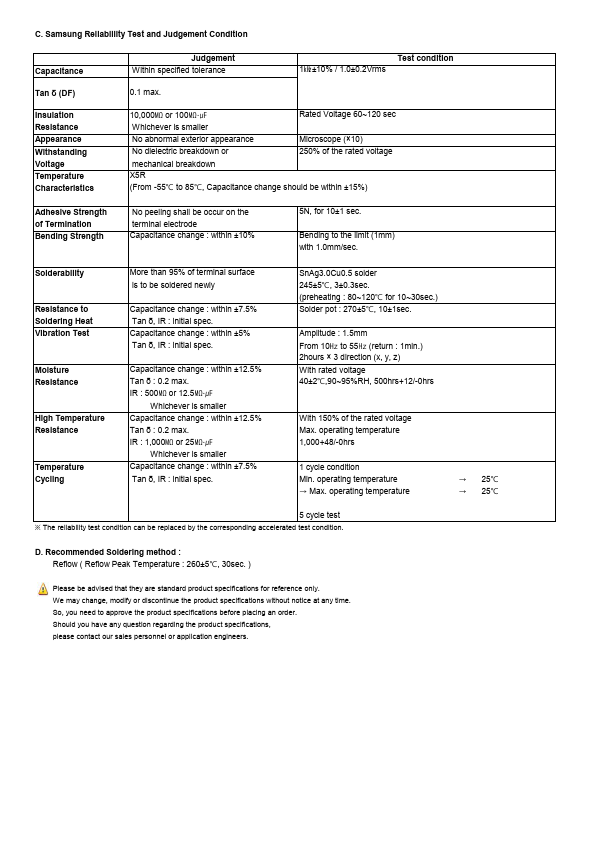

C. Samsung Reliablility Test and Judgement Condition
Capacitance
Tan δ (DF)
Insulation Resistance Appearance Withstanding Voltage Temperature Characteristics

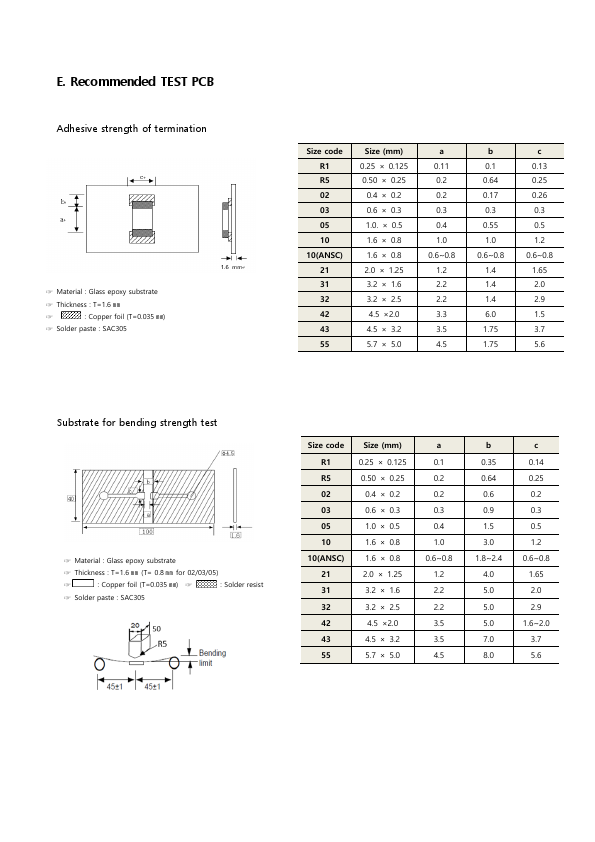

Adhesive Strength of Termination Bending Strength
Judgement Within specified tolerance
Test condition 1㎑±10% / 1.0±0.2Vrms
0.1 max.
10,000㏁ or 100㏁-...
