Samsung KLM8G1WEMB-B031

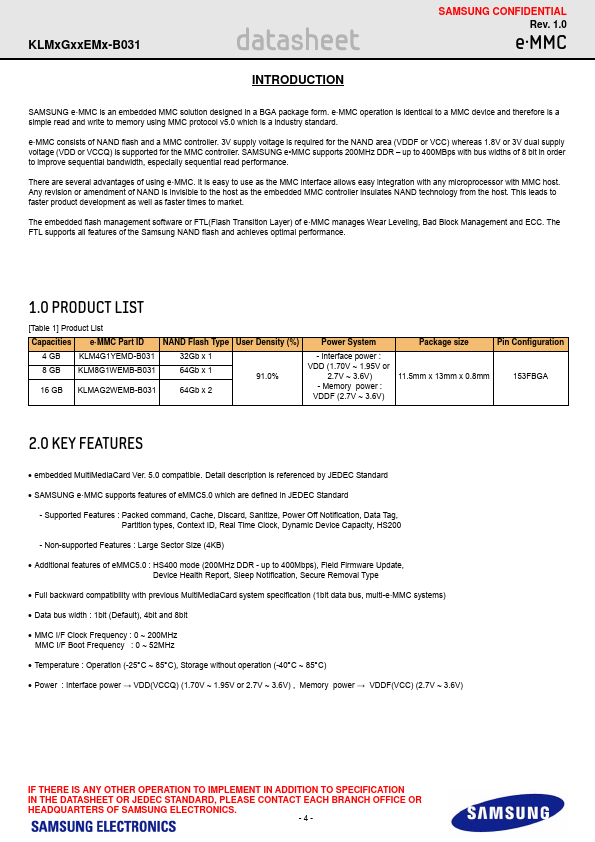

This leads to faster product development as well as faster times to market. The embedded flash management software or FTL(Flash Transition Layer) of e·MMC manages Wear Leveling, Bad Block Management and ECC.| Part No. | KLM8G1WEMB-B031 |
|---|---|
| Datasheet | KLM8G1WEMB-B031 Download |
| Manufacturer |  Samsung |
| Description | eMMC |
| Buy | Stock & Price |
FEATURES
●embedded MultiMediaCard Ver. 5.0 compatible. Detail description is referenced by JEDEC Standard●SAMSUNG e●MMC supports features of eMMC5.0 which are defined in JEDEC Standard - Supported
FEATURES
: Packed command, Cache, Discard, Sanitize, Power Off Notification, Data Tag, Partition types, Context ID, Real Time Clock, Dynamic Device Capacity, HS200 - Non-supportedFEATURES
: Large Sector Size (4KB)● Additional features of eMMC5.0 : HS400 mode (200MHz DDR - up to 400Mbps), Field Firmware Update, Device Health Report, Sleep Notification, Secure Removal Type
● Full backward compatibility with previous MultiMediaCard system specification (1bit data bus, multi-e●MMC systems)
● Data bus width : 1bit (Default), 4bit and 8bit
● MMC I/F Clock Frequency : 0 ~ 200MHz MMC I/F Boot Frequency : 0 ~ 52MHz
● Temperature : Operation (-25C ~ 85C), Storage without operation (-40C ~ 85C)
● Power : Interface power → VDD(VCCQ) (1.70V ~ 1.95V or 2.7V ~ 3.6V) , Memory power → VDDF(VCC) (2.7V...
