KLMAG2GEUF-B04Q
KLMAG2GEUF-B04Q is Automotive eMMC manufactured by Samsung Semiconductor.
- Part of the KLM8G1GEUF-B04P comparator family.
- Part of the KLM8G1GEUF-B04P comparator family.
features of the Samsung NAND flash and achieves optimal performance.

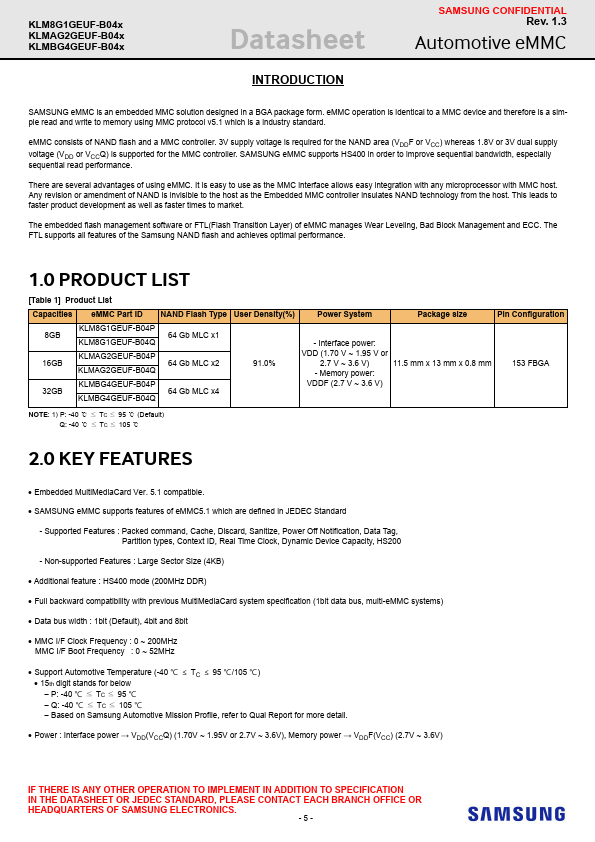

1.0 PRODUCT LIST
[Table 1] Product List
Capacities e MMC Part ID NAND Flash Type User Density(%)
Power System
Package size
Pin Configuration
8GB 16GB 32GB
KLM8G1GEUF-B04P KLM8G1GEUF-B04Q KLMAG2GEUF-B04P KLMAG2GEUF-B04Q KLMBG4GEUF-B04P KLMBG4GEUF-B04Q
64 Gb MLC x1 64 Gb MLC x2 64 Gb MLC x4
91.0%
- Interface power:
VDD (1.70 V ~ 1.95 V or
2.7 V ~ 3.6 V)
11.5...
