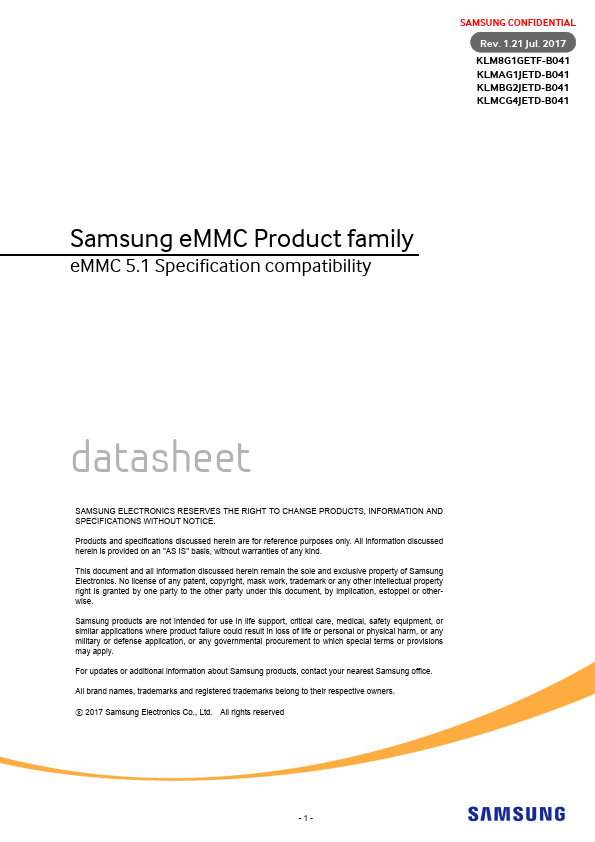

SAMSUNG CONFIDENTIAL Rev. 1.21 Jul. 2017 KLM8G1GETF-B041 KLMAG1JETD-B041 KLMBG2JETD-B041 KLMCG4JETD-B041 Samsung e MMC Product family e MMC 5.1 Specification patibility datasheet SAMSUNG ELECTRONICS RESERVES THE RIGHT TO CHANGE PRODUCTS, INFORMATION AND SPECIFICATIONS WITHOUT NOTICE. Products and specifications discussed herein are for reference purposes only. All information discussed herein is provided on an "AS IS" basis, without warranties of any kind. This document and all information discussed herein remain the sole and exclusive property of Samsung Electronics. No license of any patent, copyright, mask work, trademark or any other intellectual property right is granted by one party to the other party under this document, by implication, estoppel or otherwise. Samsung products are not intended for use in life support, critical care, medical, safety equipment, or similar applications where product failure could result in loss of life or personal or physical harm, or any military or defense application, or any governmental procurement to which special terms or provisions may apply. For updates or additional information about Samsung products, contact your nearest Samsung office. All brand names, trademarks and registered trademarks belong to their respective owners. ⓒ 2017 Samsung Electronics Co., Ltd. All rights reserved -1- KLM8G1GETF-B041 KLMAG1JETD-B041 KLMBG2JETD-B041 KLMCG4JETD-B041 datasheet SAMSUNG CONFIDENTIAL Rev. 1.21 e MMC INTRODUCTION SAMSUNG e MMC is an embedded MMC solution designed in a BGA package form. e MMC operation is identical to a MMC device and therefore is a simple read and write to memory using MMC protocol v5.1 which is a industry standard. e MMC consists of NAND flash and a MMC controller. 3V supply voltage is required for the NAND area (VDDF or VCC) whereas 1.8V or 3V dual supply voltage (VDD or VCCQ) is supported for the MMC controller. SAMSUNG e MMC supports HS400 in order to improve sequential bandwidth, especially sequential...
