LT121SS-121 - TFT LCD

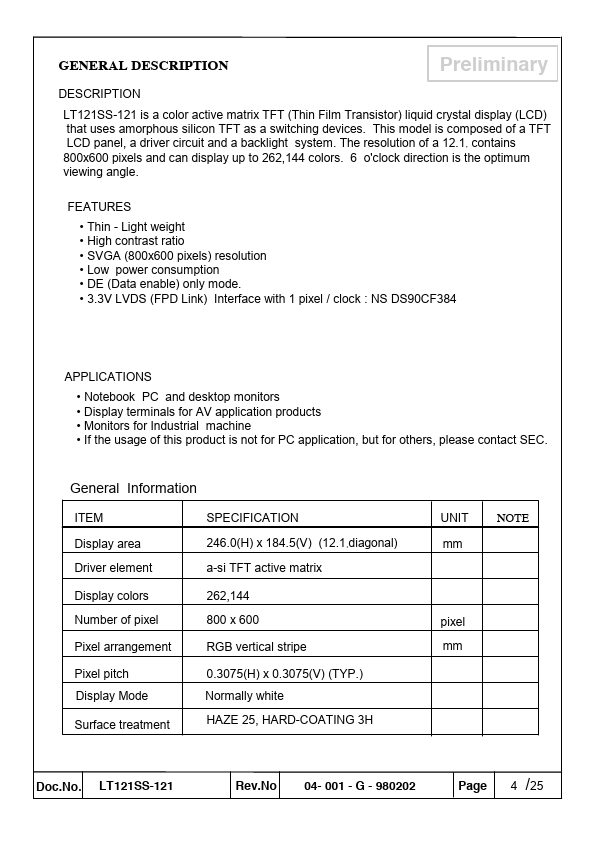

General Description

1.

Absolute Maximum Ratings 1.1 Absolute Ratings of Environment 1.2 Electrical Absolute Ratings 2.

Optical Characteristics 3.

Key Features

  • Thin - Light weight.
  • High contrast ratio.
  • SVGA (800x600 pixels) resolution.
  • Low power consumption.
  • DE (Data enable) only mode.
  • 3.3V LVDS (FPD Link) Interface with 1 pixel / clock : NS DS90CF384.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LT121SS-105 LCD DOT MATRIX GRAPHIC DISPLAY MODULE Samsung Electronics
LT121S1-xxx (LT121S1-xxx) Cable & Connector Kit ETC
LT1210 1.1A/ 35MHz Current Feedback Amplifier Linear Technology
LT1210 SMD Wire Wound Ferrite Chip Inductors Chilisin Electronics
LT1210 35MHz Current Feedback Amplifier Analog Devices

Other Datasheets by Samsung Semiconductor

Part Number Description
LT121S1-103 TFT LCD
LT121S1-105 TFT LCD
LT121S1-105W TFT LCD
LT121SU-121 TFT LCD
LT121SU-123 TFT LCD

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

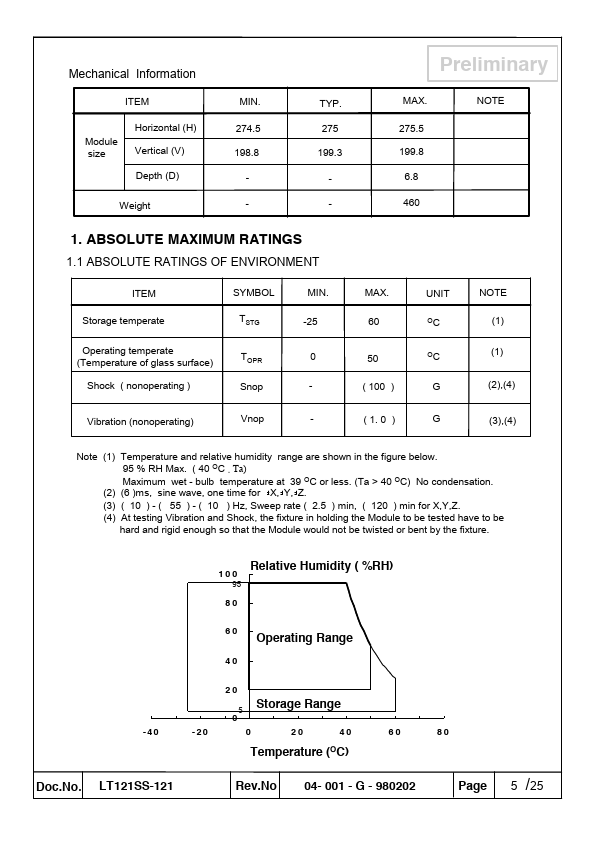

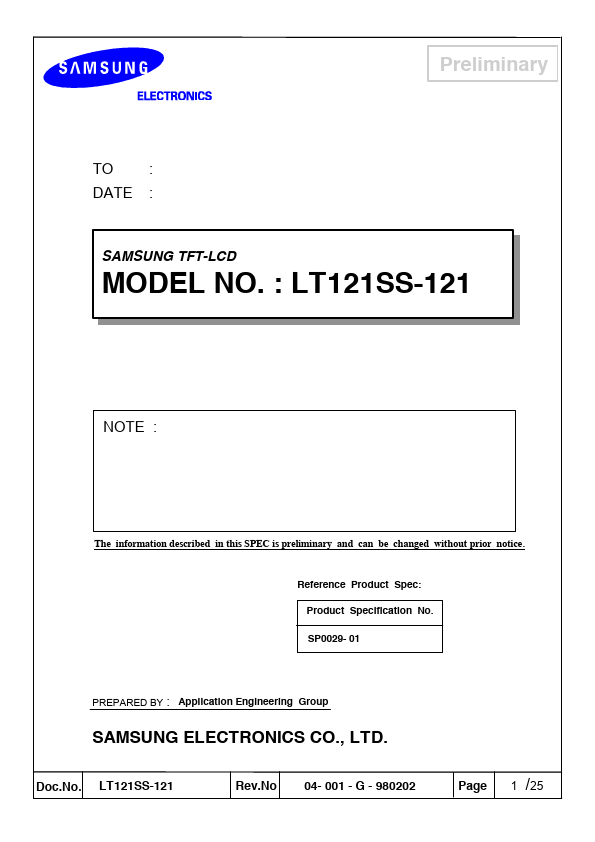

Preliminary TO DATE : : SAMSUNG SAMSUNGTFT-LCD TFT-LCD MODEL MODEL NO. NO. :: LT121SS-121 LT121SS-121 NOTE : The information described in this SPEC is preliminary and can be changed without prior notice. Reference Product Spec: Product Specification No. SP0029- 01 PREPARED BY : Application Engineering Group SAMSUNG ELECTRONICS CO., LTD. Doc.No. LT121SS-121 Rev.No 04- 001 - G - 980202 Page 1 /25 Preliminary CONTENTS Revision History General Description 1. Absolute Maximum Ratings 1.1 Absolute Ratings of Environment 1.2 Electrical Absolute Ratings 2. Optical Characteristics 3. Electrical Characteristics 3.1 TFT LCD Module 3.2 Backlight Unit 4. Block Diagram 4.1 TFT LCD Module 4.
