LTN101NT06-001 - Display Module

General Description

1.

2.

3.

Key Features

  • High contrast ratio.
  • WSVGA (1024 x 600 pixels ) resolution.
  • Fast Response.
  • LED Back Light with embedded LED Driver.
  • DE (Data enable) only mode.
  • 3.3V LVDS Interface.
  • Onboard EEDID chip.
  • Green product (RoHS compliant).

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LTN101AL03-801 LCD ETC
LTN111 LCD NXP
LTN121X1-L01 color active matrix TFT (Thin Film Transistor) liquid crystal display Samsung semiconductor
LTN141P1-L01 color active matrix TFT liquid crystal display Samsung semiconductor
LTN141x color active matrix TFT liquid crystal display Samsung semiconductor

Other Datasheets by Samsung Semiconductor

Part Number Description
LTN101NT06-2 LCD
LTN101NT02-A01 TFT LCD
LTN101NT02-A04 TFT LCD
LTN101NT02-C01 LCD
LTN101NT05-T01 TFT LCD

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

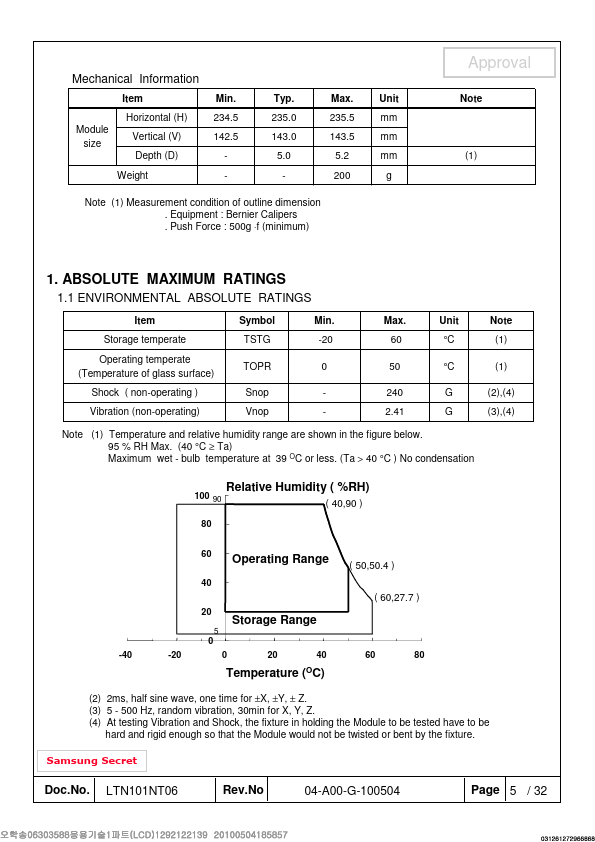

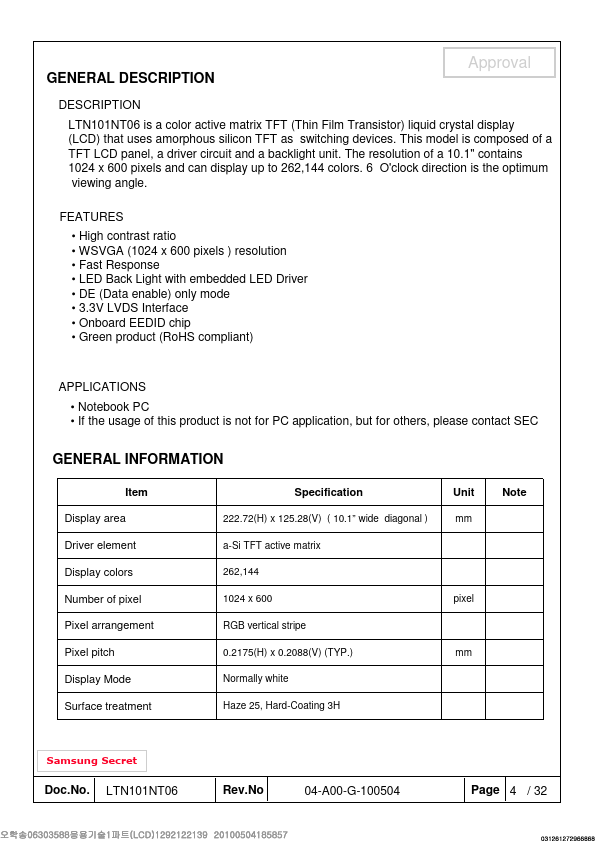

Approval TO : IT Solution Business. DATE : May. 4, 2010 SSAAMMSSUUNNGGTTFFTT-L-LCCDD MMOODDEELLNNOO..::LLTTNN110011NNTT0066--000011 NOTE : Extension code [ XXX ] → LTN101NT06[XXX] Surface type [ Anti-Glare ] The information described in this SPEC is preliminary and can be changed without prior notice. APPROVED BY : PREPARED BY : H.S.Oh Application Engineer part 1, Device Solution (LCD) SAMSUNG ELECTRONICS CO., LTD. Samsung Secret Doc.No. LTN101NT06 Rev.No 04-A00-G-100504 Page 1 / 32 CONTENTS Approval Revision History -------------------( 3 ) General Description -------------------( 4 ) 1. Absolute Maximum Ratings 1.1 Absolute Ratings of environment 1.2 Electrical Absolute Ratings -------------------( 5 ) 2. Optical Characteristics -------------------( 7 ) 3.
