LTN121W1-L03 - LCD

Description

1.

2.

3.

Features

  • High contrast ratio, high aperture structure.
  • WXGA (1280 x 800 pixels ) resolution.
  • Low power consumption.
  • Fast Response.
  • Single CCFL.
  • DE(Data enable) only mode.
  • 3.3V LVDS Interface.
  • Onboard EEDID chip.
  • Pb-free product.

📥 Download Datasheet

Datasheet preview – LTN121W1-L03

Datasheet Details

Part number LTN121W1-L03
Manufacturer Samsung
File Size 220.60 KB
Description LCD
Datasheet download datasheet LTN121W1-L03 Datasheet
Additional preview pages of the LTN121W1-L03 datasheet.

📁 Similar Datasheet

  • LTN121X1-L01 - color active matrix TFT (Thin Film Transistor) liquid crystal display (Samsung semiconductor)
  • LTN101AL03-801 - LCD (ETC)
  • LTN111 - LCD (NXP)
  • LTN141P1-L01 - color active matrix TFT liquid crystal display (Samsung semiconductor)
  • LTN141x - color active matrix TFT liquid crystal display (Samsung semiconductor)
  • LTN141X8-L02 - TFT Display Module (ETC)
  • LTN211 - Liquid Crystal Display (Philips)
Other Datasheets by Samsung

Full PDF Text Transcription

Click to expand full text

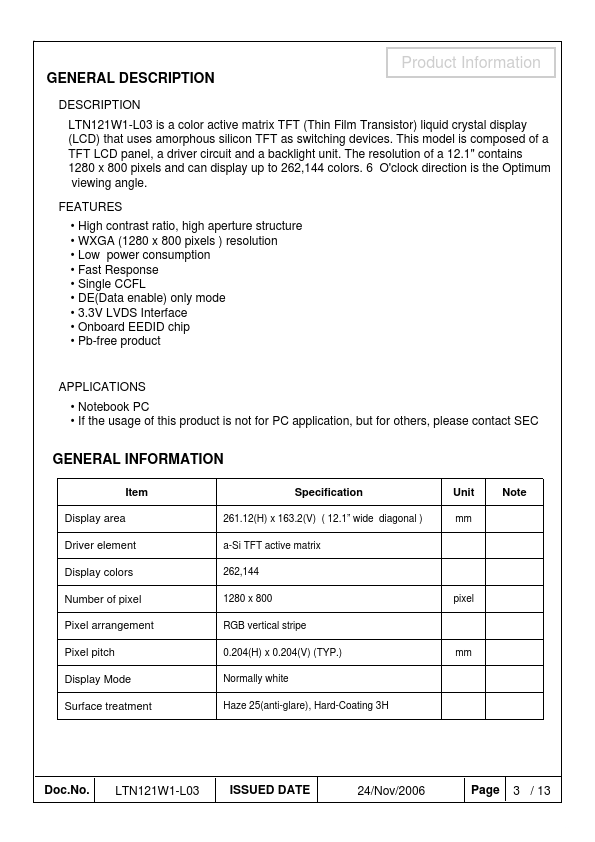

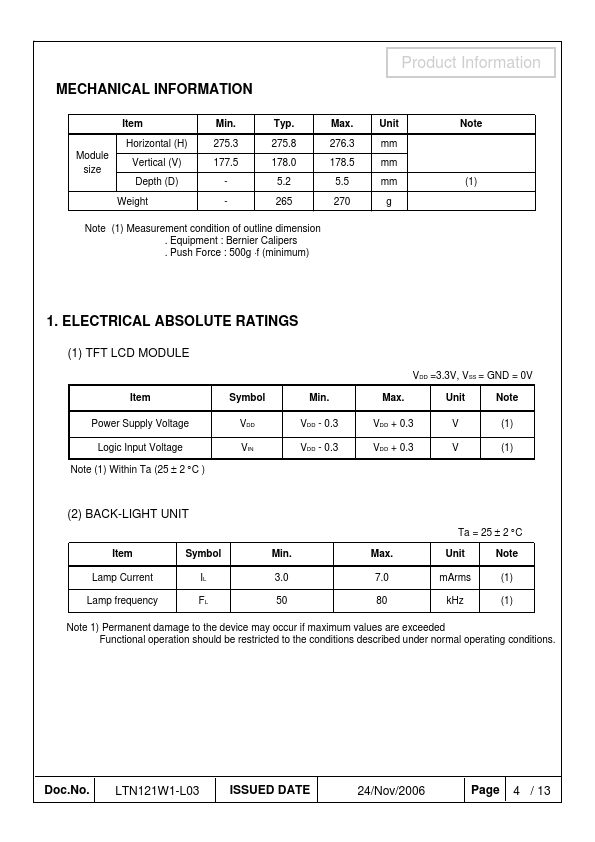

Product Information Product Information SAMSUNG SAMSUNGTFT-LCD TFT-LCD MODEL MODEL NO. NO. :: LTN121W1-L03 LTN121W1-L03 www.DataSheet.net/ LCD Product Planning Group 1, Marketing Team Samsung Electronics Co . , LTD. Doc.No. LTN121W1-L03 ISSUED DATE 24/Nov/2006 Page 1 / 13 Datasheet pdf - http://www.DataSheet4U.co.kr/ CONTENTS Product Information General Description -------------------( 3 ) 1. Electrical Absolute Ratings -------------------( 4 ) 2. Optical Characteristics -------------------( 5 ) 3. Electrical Characteristics 3.1 TFT LCD Module 3.2 Backlight Unit -------------------( 6 ) 4. Block Diagram 4.1 TFT LCD Module 4.2 Backlight Unit -------------------( 7 ) 5. Input Terminal Pin Assignment -------------------( 8 ) 5.1 Input Signal & Power 5.
