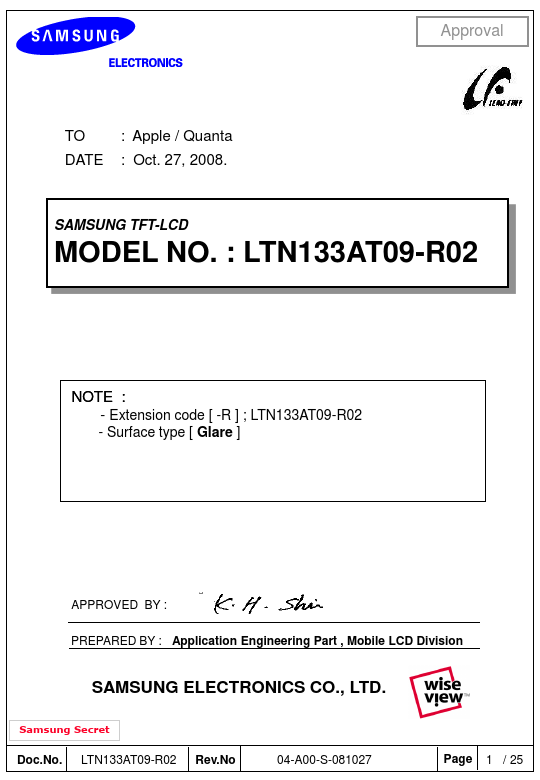

Approval
TO : Apple / Quanta DATE : Oct. 27, 2008.
SAMSUNG TFT-LCD
MODEL NO. : LTN133AT09-R02
NOTE :
- Extension code [ -R ] ; LTN133AT09-R02
- Surface type [ Glare ]
APPROVED BY : PREPARED BY : Application Engineering Part , Mobile LCD Division
SAMSUNG ELECTRONICS CO., LTD.
Samsung Secret
Doc.No. LTN133AT09-R02 Rev.No
04-A00-S-081027
Page 1 / 25

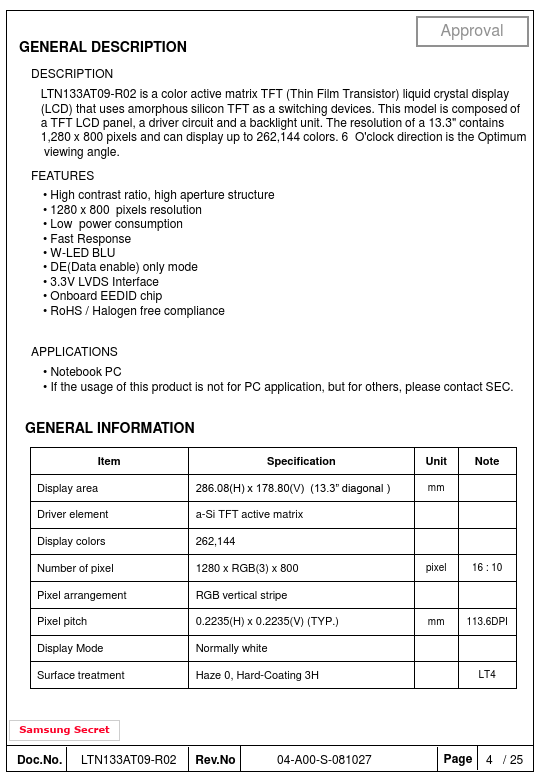

GENERAL DESCRIPTION
Approval
DESCRIPTION
LTN133AT09-R02 is a color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching devices. This model is posed of a TFT LCD panel, a driver circuit and a backlight unit. The resolution of a 13.3" contains 1,280 x 800 pixels and can...
