LTN140AT07-H01 - LCD

General Description

1.

Absolute Maximum Ratings 1.1 Absolute Ratings of environment 1.2 Electrical Absolute Ratings 2.

Optical Characteristics 3.

Key Features

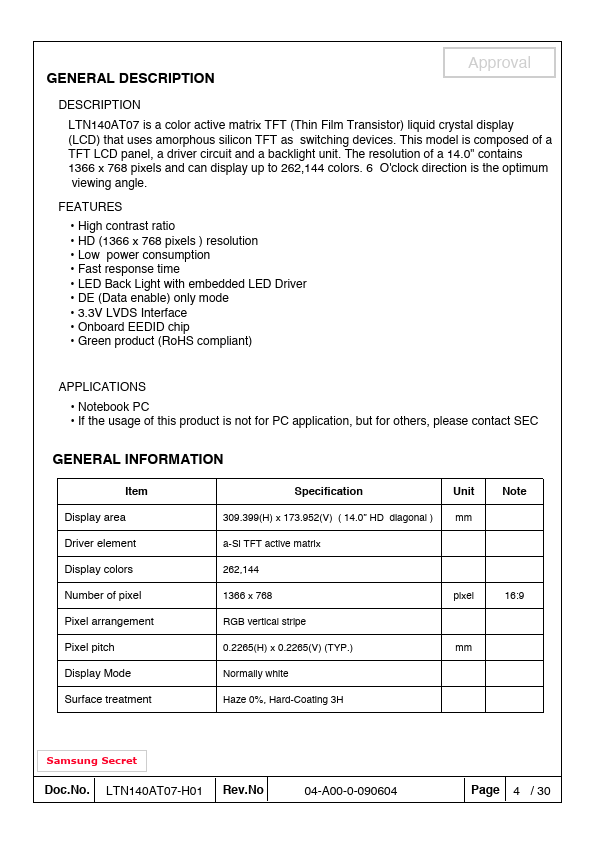

  • High contrast ratio.
  • HD (1366 x 768 pixels ) resolution.
  • Low power consumption.
  • Fast response time.
  • LED Back Light with embedded LED Driver.
  • DE (Data enable) only mode.
  • 3.3V LVDS Interface.
  • Onboard EEDID chip.
  • Green product (RoHS compliant).

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LTN141P1-L01 color active matrix TFT liquid crystal display Samsung semiconductor
LTN141x color active matrix TFT liquid crystal display Samsung semiconductor
LTN141X8-L02 TFT Display Module ETC
LTN101AL03-801 LCD ETC
LTN111 LCD NXP

Other Datasheets by Samsung Semiconductor

Part Number Description
LTN140AT07-301 TFT LCD
LTN140AT07-302 TFT LCD
LTN140AT07-B01 LCD
LTN140AT07-K02 TFT LCD
LTN140AT07-W01 LCD

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
www.DataSheet.co.kr Approval TO DATE : : Jun. 4, 2009 SAMSUNG SAMSUNGTFT-LCD TFT-LCD MODEL MODEL NO. NO. :: LTN140AT07-H01 LTN140AT07-H01 NOTE : Extension code [ -H01 ] → LTN140AT07-H01 Surface type [ Glare ] Any Modification of Spec is not allowed without SEC’ permission. APPROVED BY : PREPARED BY : Technical Customer Support Team, LCD Division Samsung Electronics Co., Ltd. Samsung Secret Doc.No. LTN140AT07-H01 Rev.No 04-A00-0-090604 Page 1 / 30 Datasheet pdf - http://www.DataSheet4U.net/ www.DataSheet.co.kr CONTENTS Revision History General Description 1. Absolute Maximum Ratings 1.1 Absolute Ratings of environment 1.2 Electrical Absolute Ratings 2. Optical Characteristics 3. Electrical Characteristics 3.1 TFT LCD Module 3.2 Backlight Unit 3.3 LED Driver 4.
