LTN140AT26-H02 - TFT LCD

Datasheet Summary

Description

1.

2.

3.

Features

  • High contrast ratio.
  • HD (1366 x 768 pixels ) resolution.
  • Low power consumption.
  • Fast response time.
  • LED Back Light with embedded LED Driver.
  • DE (Data enable) only mode.
  • 3.3V LVDS Interface.
  • Onboard EEDID chip.
  • Green product (RoHS compliant).
  • HP EDID Ver 3.1 compliance.

📥 Download Datasheet

Datasheet preview – LTN140AT26-H02

Datasheet Details

Part number LTN140AT26-H02
Manufacturer Samsung
File Size 628.25 KB
Description TFT LCD
Datasheet download datasheet LTN140AT26-H02 Datasheet
Additional preview pages of the LTN140AT26-H02 datasheet.

📁 Similar Datasheet

  • LTN141P1-L01 - color active matrix TFT liquid crystal display (Samsung semiconductor)
  • LTN141x - color active matrix TFT liquid crystal display (Samsung semiconductor)
  • LTN141X8-L02 - TFT Display Module (ETC)
  • LTN101AL03-801 - LCD (ETC)
  • LTN111 - LCD (NXP)
  • LTN121X1-L01 - color active matrix TFT (Thin Film Transistor) liquid crystal display (Samsung semiconductor)
  • LTN211 - Liquid Crystal Display (Philips)
Other Datasheets by Samsung

Full PDF Text Transcription

Click to expand full text

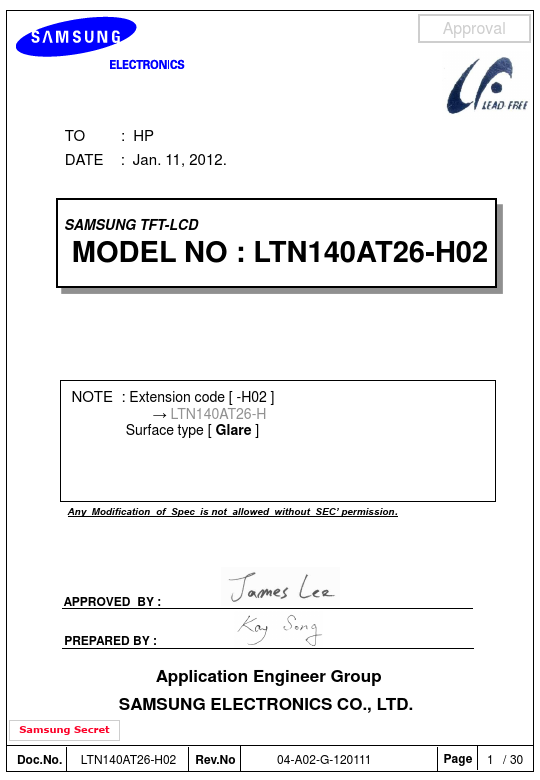

Approval TO : HP DATE : Jan. 11, 2012. SAMSUNG TFT-LCD MODEL NO : LTN140AT26-H02 NOTE : Extension code [ -H02 ] → LTN140AT26-H Surface type [ Glare ] Any Modification of Spec is not allowed without SEC’ permission. APPROVED BY : PREPARED BY : Application Engineer Group SAMSUNG ELECTRONICS CO., LTD. Samsung Secret Doc.No. LTN140AT26-H02 Rev.No 04-A02-G-120111 Page 1 / 30 CONTENTS Revision History General Description 1. Absolute Maximum Ratings 1.1 Absolute Ratings of environment 1.2 Electrical Absolute Ratings 2. Optical Characteristics 3. Electrical Characteristics 3.1 TFT LCD Module 3.2 Backlight Unit 3.3 LED Driver 4. Block Diagram 4.1 TFT LCD Module 4.
