LTN141BT06-102 - TFT LCD

Download the LTN141BT06-102 datasheet PDF. This datasheet also covers the LTN141BT06 variant, as both devices belong to the same tft lcd family and are provided as variant models within a single manufacturer datasheet.

Description

1.

2.

3.

Features

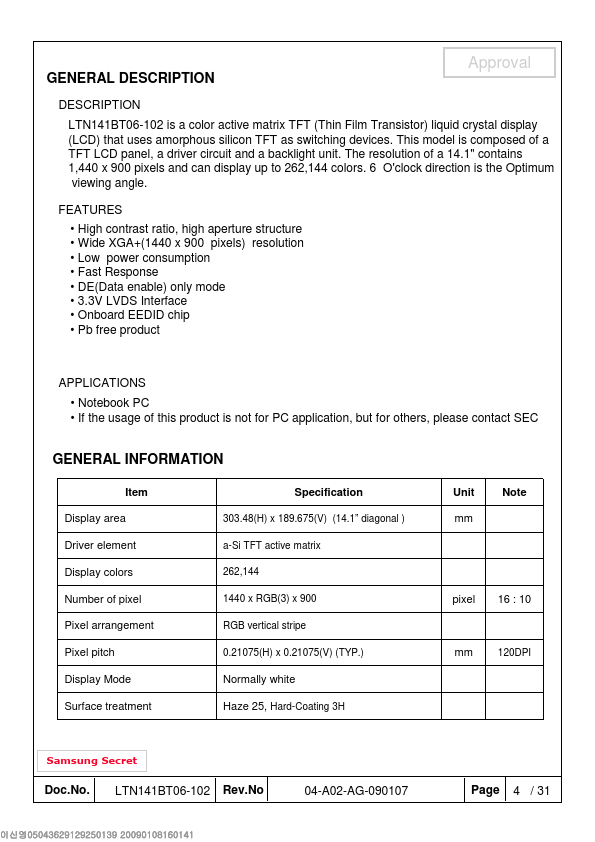

  • High contrast ratio, high aperture structure.
  • Wide XGA+(1440 x 900 pixels) resolution.
  • Low power consumption.
  • Fast Response.
  • DE(Data enable) only mode.
  • 3.3V LVDS Interface.
  • Onboard EEDID chip.
  • Pb free product.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (LTN141BT06-Samsung.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
LTN141P1-L01 color active matrix TFT liquid crystal display Samsung semiconductor
LTN141x color active matrix TFT liquid crystal display Samsung semiconductor
LTN141X8-L02 TFT Display Module ETC
LTN101AL03-801 LCD ETC
LTN111 LCD NXP

Other Datasheets by Samsung Semiconductor

Part Number Description
LTN141BT06 TFT LCD
LTN141BT08-002 TFT LCD
LTN141BT08-003 TFT LCD
LTN141AT02-101 TFT LCD Module
LTN141AT03-101 TFT LCD Module

Full PDF Text Transcription

Click to expand full text

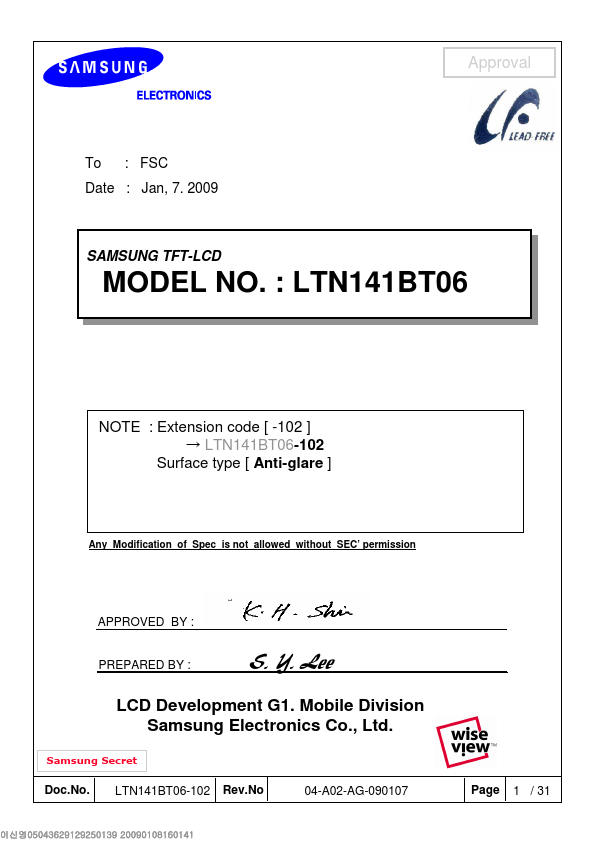

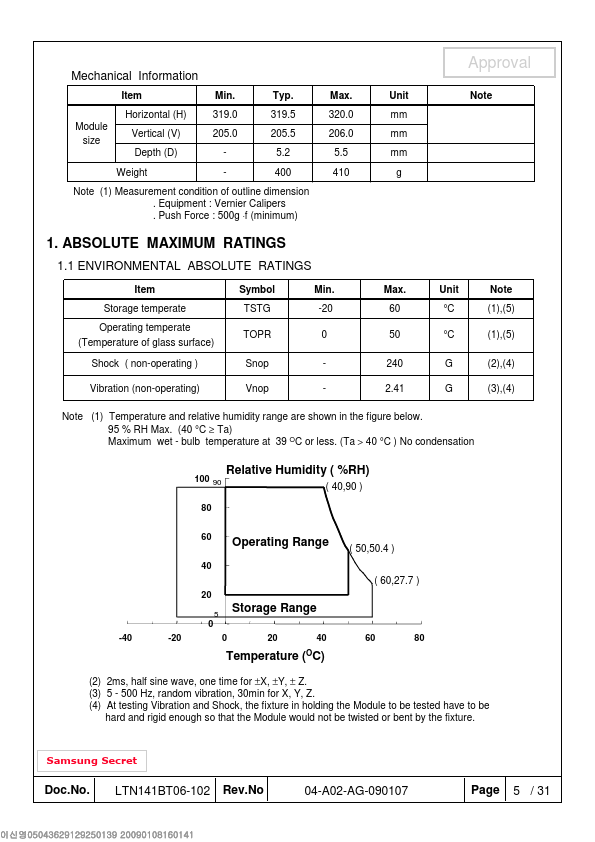

Approval To : FSC Date : Jan, 7. 2009 SSAAMMSSUUNNGGTTFFTT-L-LCCDD MMOODDEELLNNOO..::LLTTNN114411BBTT0066 NOTE : Extension code [ -102 ] → LTN141BT06-102 Surface type [ Anti-glare ] Any Modification of Spec is not allowed without SEC’ permission APPROVED BY : PREPARED BY : S. Y. Lee LCD Development G1. Mobile Division Samsung Electronics Co., Ltd. Samsung Secret Doc.No. LTN141BT06-102 Rev.No 04-A02-AG-090107 Page 1 / 31 CONTENTS Approval Revision History -------------------( 3 ) General Description -------------------( 4 ) 1. Absolute Maximum Ratings 1.1 Absolute Ratings of environment 1.2 Electrical Absolute Ratings -------------------( 5 ) 2. Optical Characteristics -------------------( 7 ) 3. Electrical Characteristics 3.1 TFT LCD Module 3.
