LTN141W2-L01 - TFT LCD

Description

Absolute Maximum Ratings 1.1 Absolute Ratings of environment 1.2 Electrical Absolute Ratings 2.

Optical Characteristics 3.

Features

High contrast ratio and high brightness for outdoor visibility.
Attached the protective glass for surface durability.
1280 x 800 pixels resolution.
Low power consumption.
Fast Response.
2 CCFL.
DE(Data enable) only mode.
3.3V LVDS Interface.
Onboard EEDID chip.
Attached Burst mode Inverter with Ambient Light Sensor.

Samsung

📥 Download Datasheet

Datasheet Details

Part number	LTN141W2-L01
Manufacturer	Samsung
File Size	447.31 KB
Description	TFT LCD
Datasheet	LTN141W2-L01 Datasheet
Additional preview pages of the LTN141W2-L01 datasheet.

📁 Similar Datasheet

LTN141P1-L01 - color active matrix TFT liquid crystal display (Samsung semiconductor)
LTN141x - color active matrix TFT liquid crystal display (Samsung semiconductor)
LTN141X8-L02 - TFT Display Module (ETC)
LTN101AL03-801 - LCD (ETC)
LTN111 - LCD (NXP)
LTN121X1-L01 - color active matrix TFT (Thin Film Transistor) liquid crystal display (Samsung semiconductor)
LTN211 - Liquid Crystal Display (Philips)

Other Datasheets by Samsung

Full PDF Text Transcription

Click to expand full text

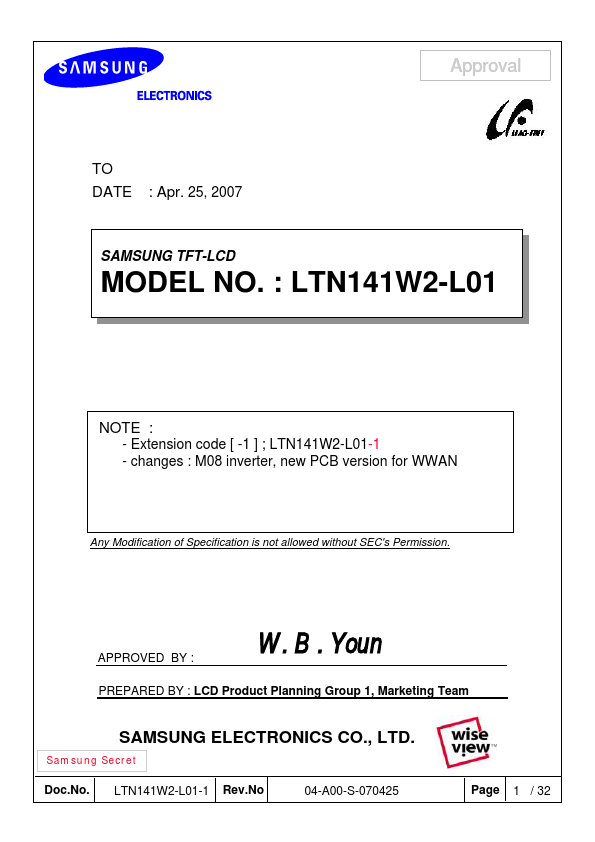

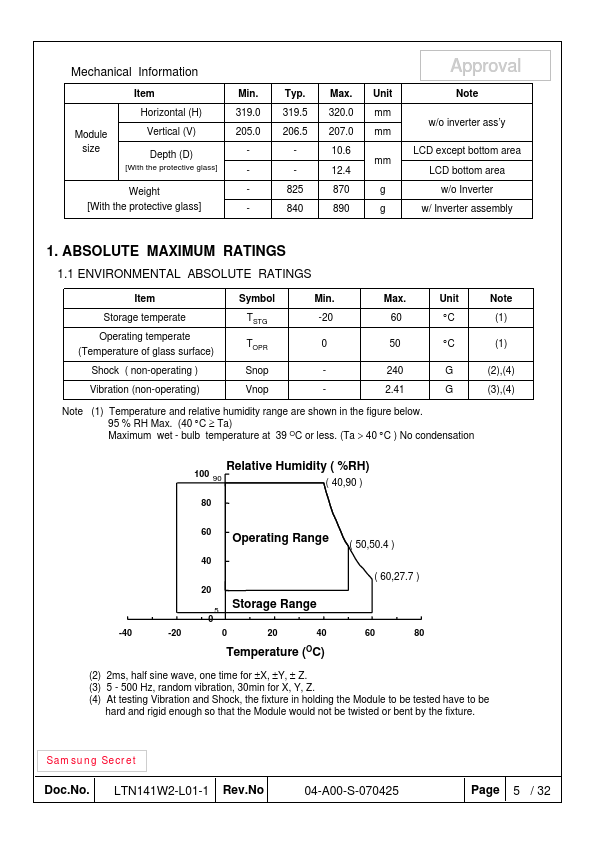

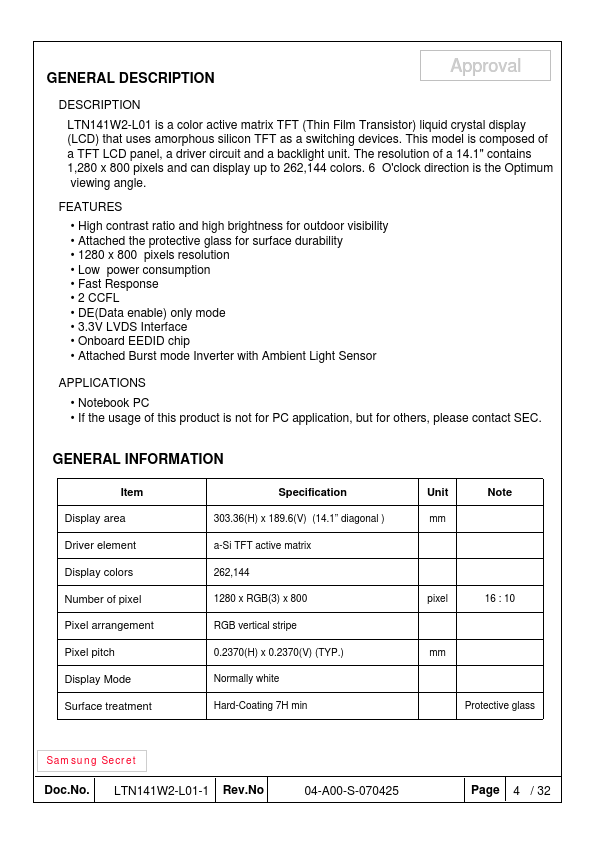

Approval TO DATE : Apr. 25, 2007 SAMSUNG SAMSUNGTFT-LCD TFT-LCD MODEL MODEL NO. NO. :: LTN141W2-L01 LTN141W2-L01 NOTE : www.DataSheet.net/ - Extension code [ -1 ] ; LTN141W2-L01-1 - changes : M08 inverter, new PCB version for WWAN Any Modification of Specification is not allowed without SEC's Permission. APPROVED BY : W. B . Youn PREPARED BY : LCD Product Planning Group 1, Marketing Team SAMSUNG ELECTRONICS CO., LTD. Samsung Secret Doc.No. LTN141W2-L01-1 Rev.No 04-A00-S-070425 Page 1 / 32 Datasheet pdf - http://www.DataSheet4U.co.kr/ Approval CONTENTS Revision History General Description 1. Absolute Maximum Ratings 1.1 Absolute Ratings of environment 1.2 Electrical Absolute Ratings 2. Optical Characteristics 3. Electrical Characteristics 3.1 TFT LCD Module 3.
