LTN141XA-L01 - LCD

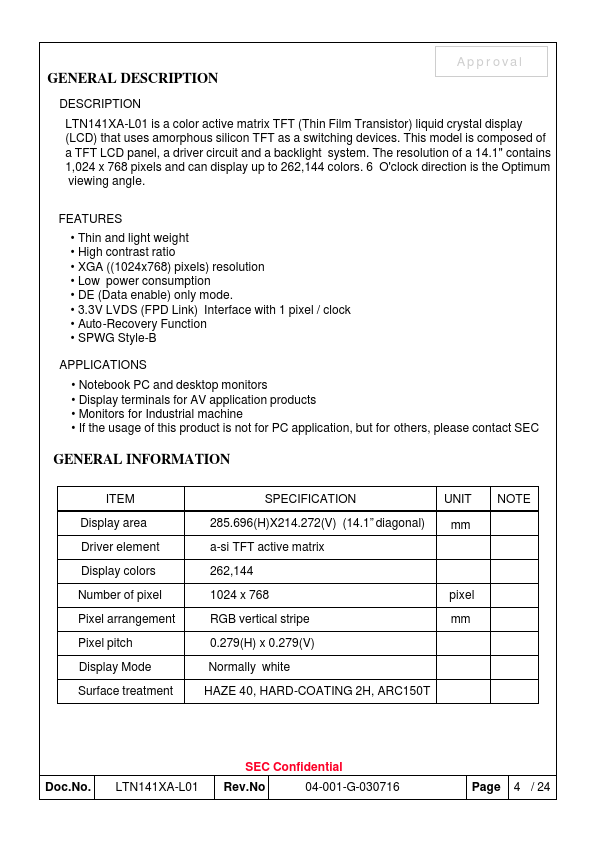

General Description

1.

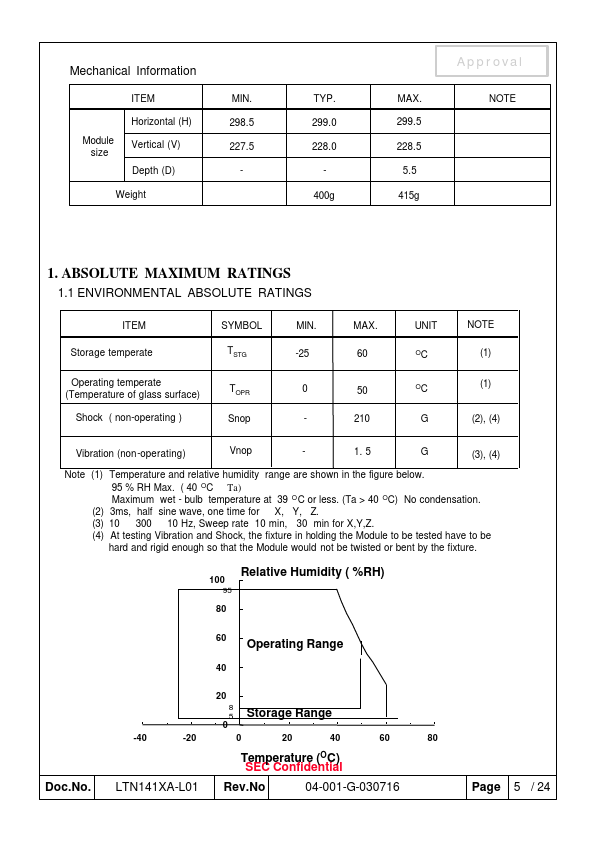

Absolute Maximum Ratings 1.1 Absolute Ratings of environment 1.2 Electrical Absolute Ratings 2.

Optical Characteristics 3.

Key Features

  • Thin and light weight.
  • High contrast ratio.
  • XGA ((1024x768) pixels) resolution.
  • Low power consumption.
  • DE (Data enable) only mode.
  • 3.3V LVDS (FPD Link) Interface with 1 pixel / clock.
  • Auto-Recovery Function.
  • SPWG Style-B.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LTN141x color active matrix TFT liquid crystal display Samsung semiconductor
LTN141X8-L02 TFT Display Module ETC
LTN141P1-L01 color active matrix TFT liquid crystal display Samsung semiconductor
LTN101AL03-801 LCD ETC
LTN111 LCD NXP

Other Datasheets by Samsung Semiconductor

Part Number Description
LTN141X7-124 TFT LCD Module
LTN141X8-L02 LCD
LTN141XB-L02 LCD
LTN141XB-L03 Display Module
LTN141XB-L04 LCD

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

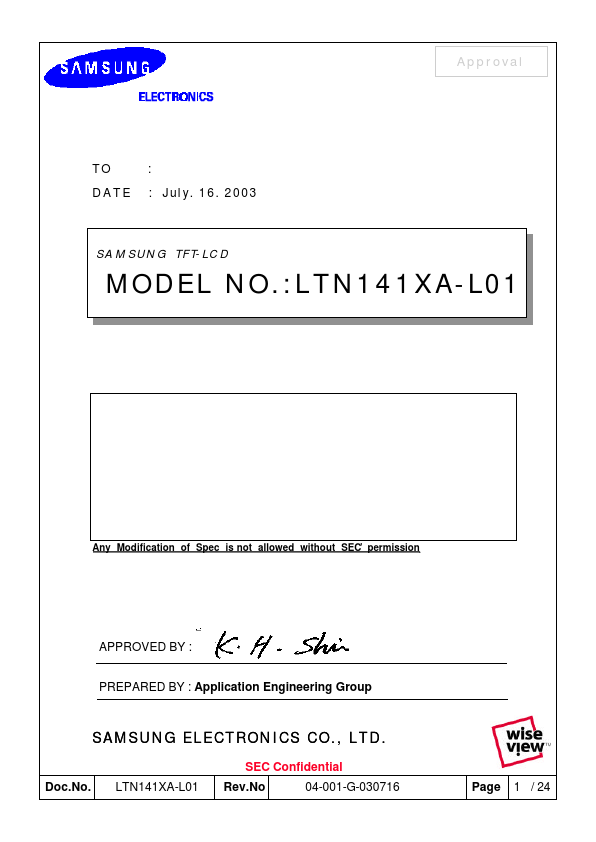

Approval TO DATE : : July. 16. 2003 S A M S U N G T F T- L C D S A M S U N G T F T- L C D M MO OD DE EL LN NO O..::L LT TN N1 14 41 1X XAA-L01 L01 www.DataSheet.net/ Any Modification of Spec is not allowed without SEC’ permission APPROVED BY : PREPARED BY : Application Engineering Group SAMSUNG ELECTRONICS CO., LTD. SEC Confidential Doc.No. LTN141XA-L01 Rev.No 04-001-G-030716 Page 1 / 24 Datasheet pdf - http://www.DataSheet4U.co.kr/ Approval CONTENTS Revision History General Description 1. Absolute Maximum Ratings 1.1 Absolute Ratings of environment 1.2 Electrical Absolute Ratings 2. Optical Characteristics 3. Electrical Characteristics 3.1 TFT LCD Module 3.2 Backlight Unit 4. Block Diagram 4.1 TFT LCD Module 4.
