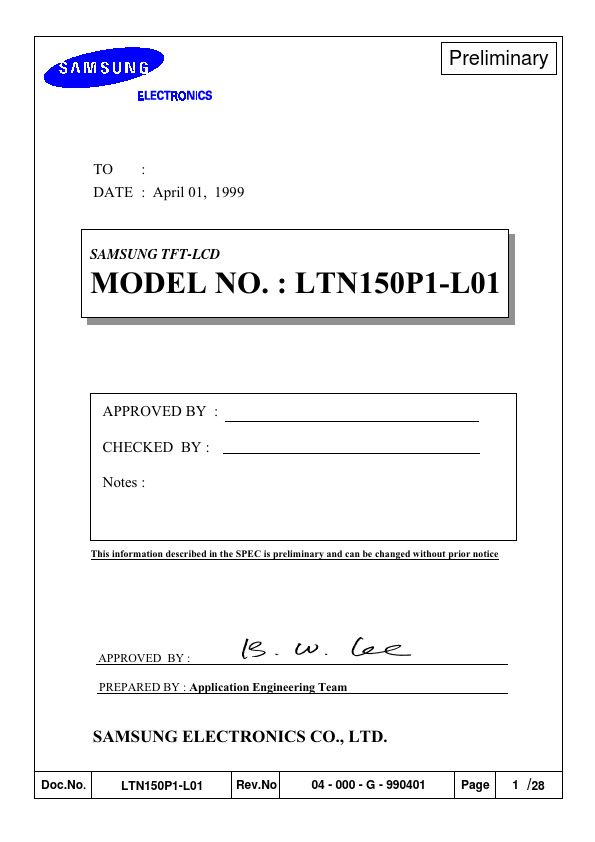

LTN150P1-L01 - TFT LCD

General Description

1.

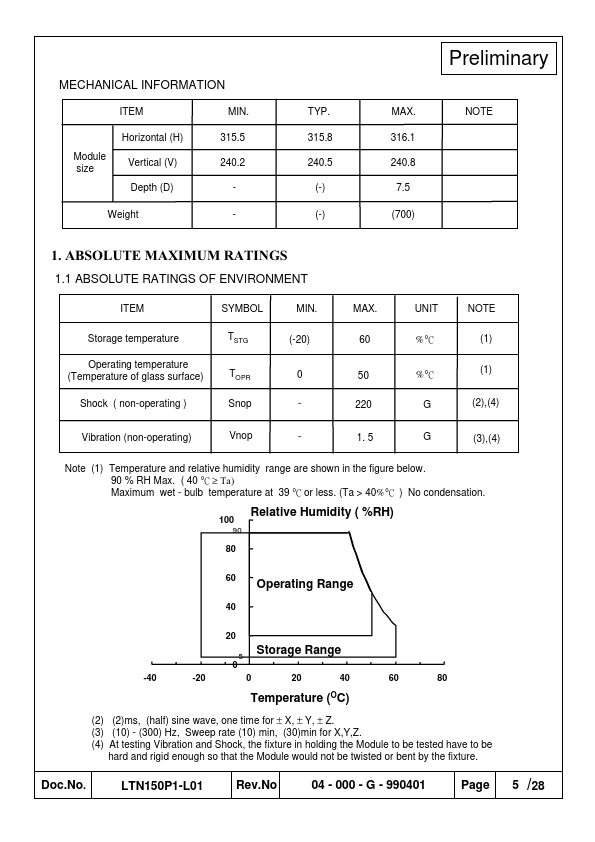

Absolute Maximum Ratings 1.1 Absolute Ratings Of Environment 1.2 Electrical Absolute Ratings 2.

Optical Characteristics 3.

Key Features

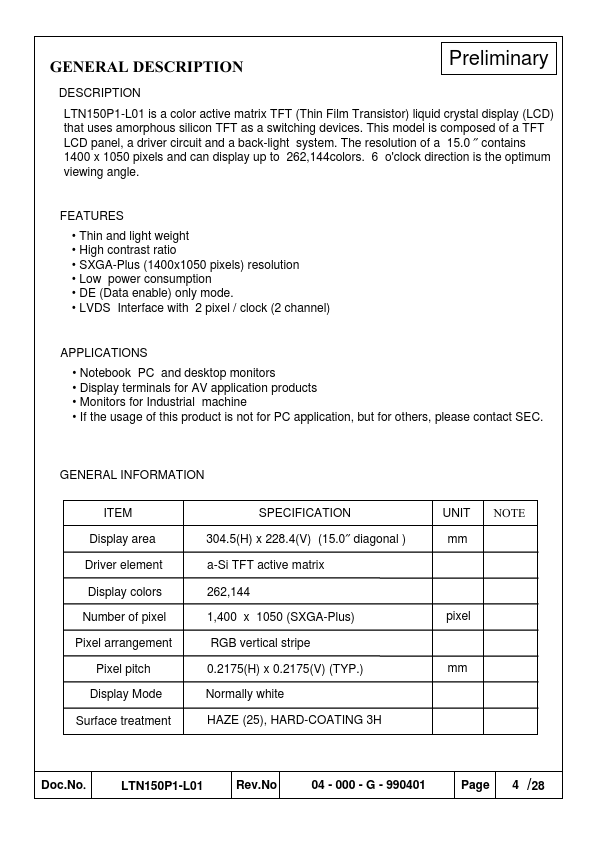

  • Thin and light weight.
  • High contrast ratio.
  • SXGA-Plus (1400x1050 pixels) resolution.
  • Low power consumption.
  • DE (Data enable) only mode.
  • LVDS Interface with 2 pixel / clock (2 channel).
