LTN154AT07-F - Display Module

General Description

1.

Absolute Maximum Ratings 1.1 Absolute Ratings of environment 1.2 Electrical Absolute Ratings 2.

Optical Characteristics 3.

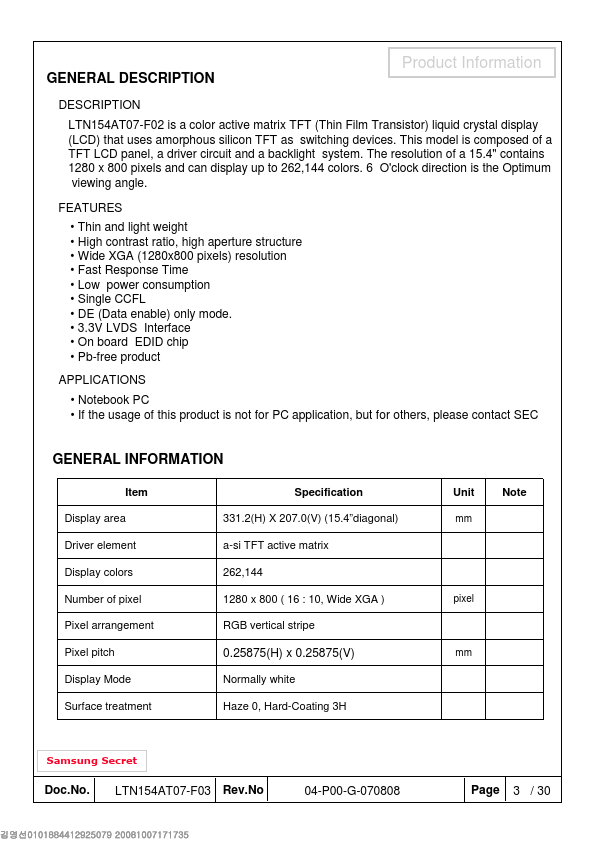

Key Features

  • Thin and light weight.
  • High contrast ratio, high aperture structure.
  • Wide XGA (1280x800 pixels) resolution.
  • Fast Response Time.
  • Low power consumption.
  • Single CCFL.
  • DE (Data enable) only mode.
  • 3.3V LVDS Interface.
  • On board EDID chip.
  • Pb-free product.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LTN101AL03-801 LCD ETC
LTN111 LCD NXP
LTN121X1-L01 color active matrix TFT (Thin Film Transistor) liquid crystal display Samsung semiconductor
LTN141P1-L01 color active matrix TFT liquid crystal display Samsung semiconductor
LTN141x color active matrix TFT liquid crystal display Samsung semiconductor

Other Datasheets by Samsung Semiconductor

Part Number Description
LTN154AT07-B01 TFT LCD
LTN154AT07-N01 TFT LCD
LTN154AT07-T01 Display Module
LTN154AT01-001 TFT LCD
LTN154AT01-101 TFT LCD

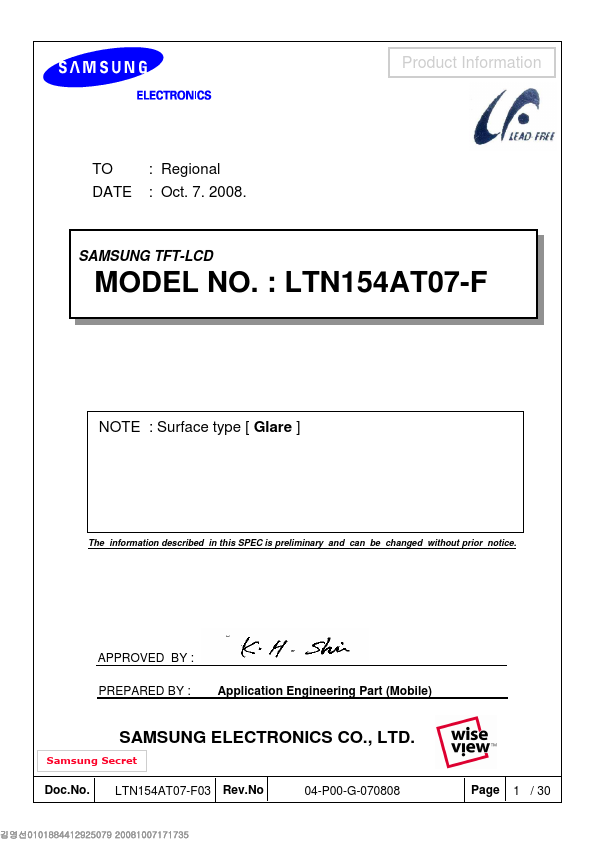

Full PDF Text Transcription (Reference)
