LTN154AT07-N01 - TFT LCD

Product Overview

Samsung

Datasheet Details

Part number	LTN154AT07-N01
Manufacturer	Samsung
File Size	517.46 KB
Description	TFT LCD
Datasheet	LTN154AT07-N01 Datasheet
Additional preview pages of the LTN154AT07-N01 datasheet.

Product details

Description

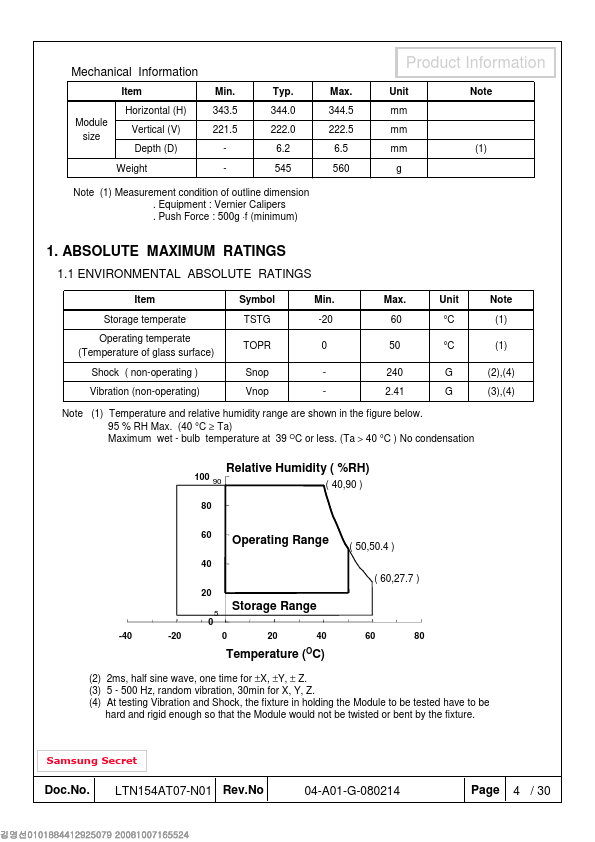

-------------------( 4 ) 1. Absolute Maximum Ratings 1.1 Absolute Ratings of Environment 1.2 Electrical Absolute Ratings -------------------( 5 ) 2. Optical Characteristics -------------------( 7 ) 3. Electrical Characteristics 3.1 TFT LCD Module 3.2 Backlight Unit - - - - - - - - - - - - - - - - - - - ( 10 ) 4. Block Diagram 4.1 TFT LCD Module 4.2 Backlight Unit - - - - - - - - - - - - - - - - - - - ( 13 ) 5. Input Terminal Pin Assignment - - - - - - - - - - - - - - - - - - - ( 15 )

Features

Thin and light weight.
High contrast ratio, high aperture structure.
Wide XGA (1280x800 pixels) resolution.
Fast Response Time.
Low power consumption.
Single CCFL.
DE (Data enable) only mode.
3.3V LVDS Interface.
On board EDID chip.
Pb-free product.
