LTN154BT03-001 - LCD

Description

1.

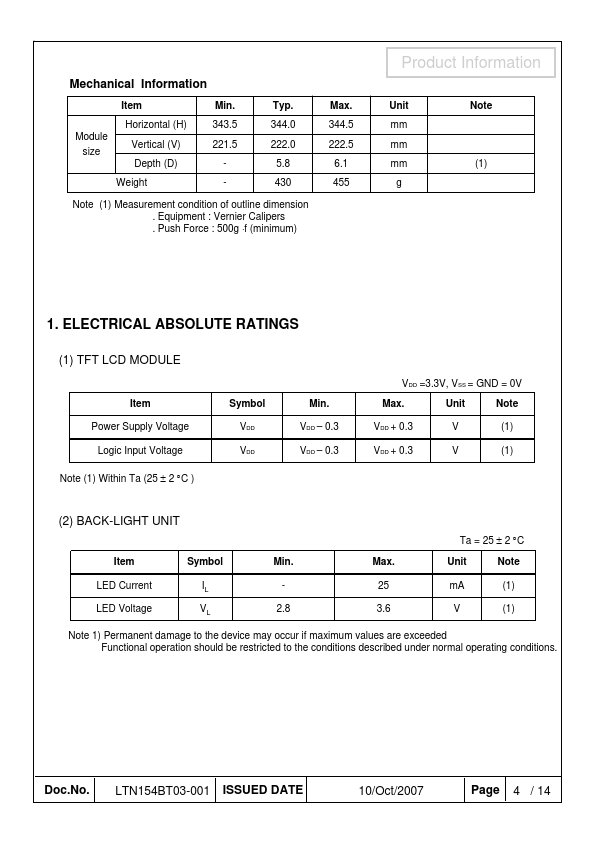

Absolute Maximum Ratings 1.1 Absolute Ratings of environment 1.2 Electrical Absolute Ratings 2.

Optical Characteristics 3.

Features

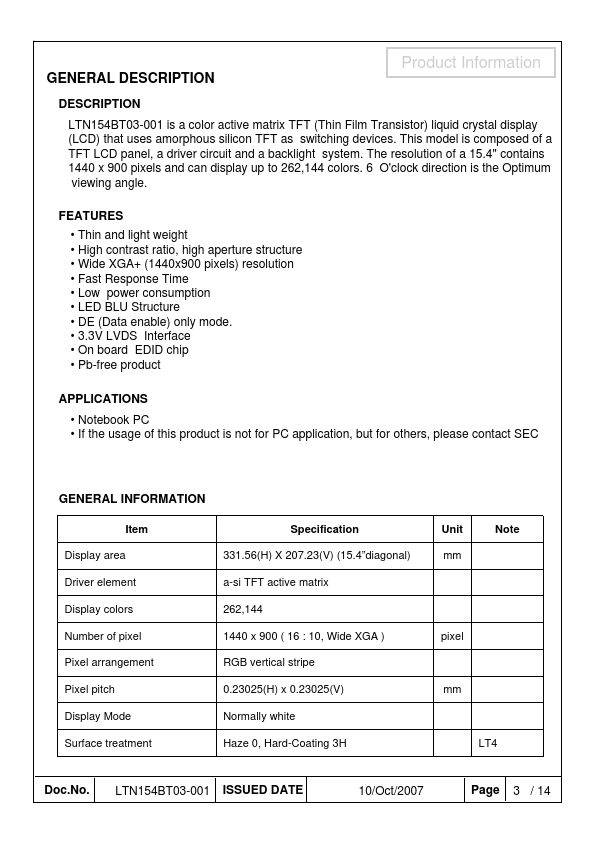

  • Thin and light weight.
  • High contrast ratio, high aperture structure.
  • Wide XGA+ (1440x900 pixels) resolution.
  • Fast Response Time.
  • Low power consumption.
  • LED BLU Structure.
  • DE (Data enable) only mode.
  • 3.3V LVDS Interface.
  • On board EDID chip.
  • Pb-free product.

📥 Download Datasheet

Datasheet preview – LTN154BT03-001

📁 Similar Datasheet

  • LTN101AL03-801 - LCD (ETC)
  • LTN111 - LCD (NXP)
  • LTN121X1-L01 - color active matrix TFT (Thin Film Transistor) liquid crystal display (Samsung semiconductor)
  • LTN141P1-L01 - color active matrix TFT liquid crystal display (Samsung semiconductor)
  • LTN141x - color active matrix TFT liquid crystal display (Samsung semiconductor)
  • LTN141X8-L02 - TFT Display Module (ETC)
  • LTN211 - Liquid Crystal Display (Philips)
Other Datasheets by Samsung

Full PDF Text Transcription

Click to expand full text
www.DataSheet.co.kr Approval TO DATE : Apple / Quanta : July. 17, 2007 SAMSUNG SAMSUNGTFT-LCD TFT-LCD MODEL MODEL NO NO :: LTN154BT03-001 LTN154BT03-001 Surface type [ Glossy ] Any Modification of Spec is not allowed without SEC’ permission APPROVED BY : W. B. Youn PREPARED BY : LCD Development Team 3 SAMSUNG ELECTRONICS CO., LTD. Samsung Secret Doc.No. LTN154BT03-001 Rev.No 04-A01-G-070717 Page 1 / 25 Datasheet pdf - http://www.DataSheet4U.net/ www.DataSheet.co.kr Approval CONTENTS Revision History General Description 1. Absolute Maximum Ratings 1.1 Absolute Ratings of environment 1.2 Electrical Absolute Ratings 2. Optical Characteristics 3. Electrical Characteristics 3.1 TFT LCD Module 3.2 Backlight Unit 4. Block Diagram 4.1 TFT LCD Module 4.
