Datasheet Details
| Part number | LTN154U2-L05 |
|---|---|
| Manufacturer | Samsung Semiconductor |
| File Size | 394.17 KB |
| Description | LCD |
| Datasheet | LTN154U2-L05_Samsung.pdf |
|
|

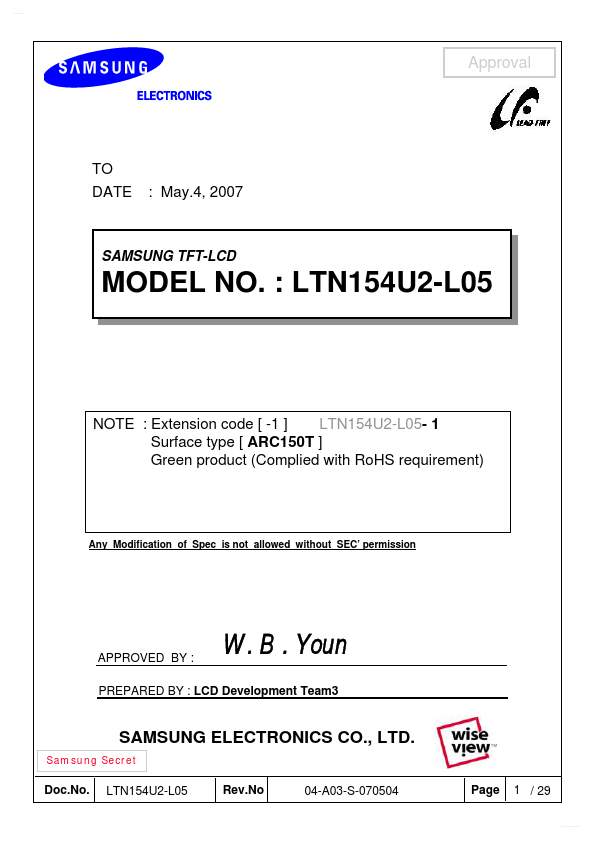

Overview: .DataSheet.co.kr LTN154U2-L05 Datasheet pdf - http://..net/ .DataSheet.co.kr Approval TO DATE : Lenovo / Quanta : May.4, 2007 SAMSUNG SAMSUNGTFT-LCD TFT-LCD MODEL MODEL NO. NO. :: LTN154U2-L05 LTN154U2-L05 NOTE : Extension code [ -1 ] LTN154U2-L05- 1 Surface type [ ARC150T ] Green product (plied with RoHS requirement) Any Modification of Spec is not allowed without SEC’ permission APPROVED BY : W. B . Youn PREPARED BY : LCD Development Team3 SAMSUNG ELECTRONICS CO., LTD. Samsung Secret Doc.No. LTN154U2-L05 Rev.No 04-A03-S-070504 Page 1 / 29 Datasheet pdf - http://..net/ .DataSheet.co.
| Part number | LTN154U2-L05 |
|---|---|
| Manufacturer | Samsung Semiconductor |
| File Size | 394.17 KB |
| Description | LCD |
| Datasheet | LTN154U2-L05_Samsung.pdf |
|
|
|
1.

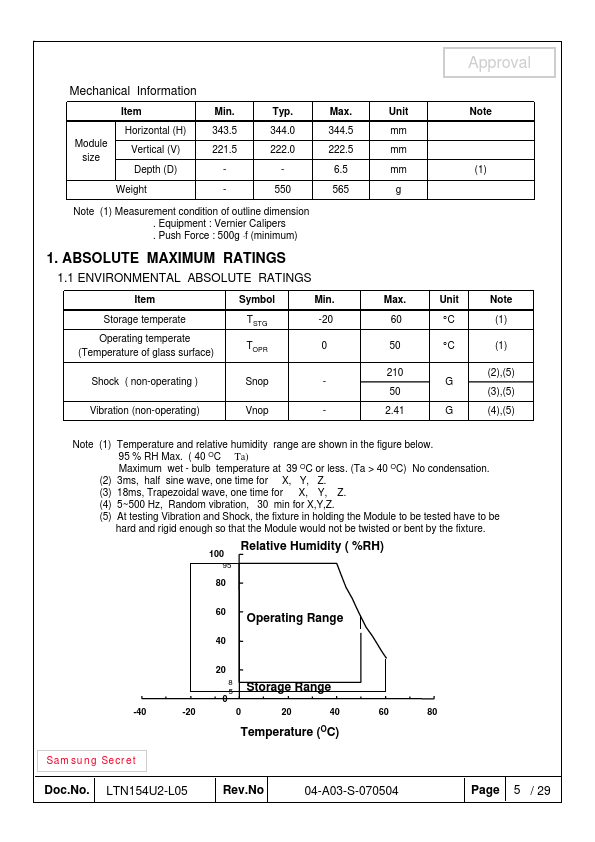

Absolute Maximum Ratings 1.1 Absolute Ratings of environment 1.2 Electrical Absolute Ratings 2.
Optical Characteristics 3.
