LTN156AT19-0 - TFT LCD

Description

1.

2.

3.

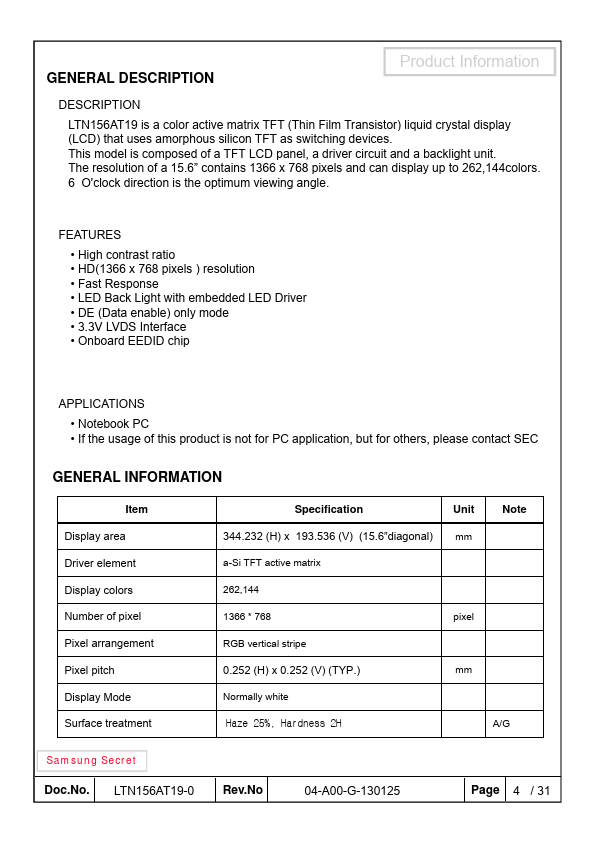

Features

  • High contrast ratio.
  • HD(1366 x 768 pixels ) resolution.
  • Fast Response.
  • LED Back Light with embedded LED Driver.
  • DE (Data enable) only mode.
  • 3.3V LVDS Interface.
  • Onboard EEDID chip.

📥 Download Datasheet

Datasheet preview – LTN156AT19-0

Datasheet Details

Part number LTN156AT19-0
Manufacturer Samsung
File Size 372.83 KB
Description TFT LCD
Datasheet download datasheet LTN156AT19-0 Datasheet

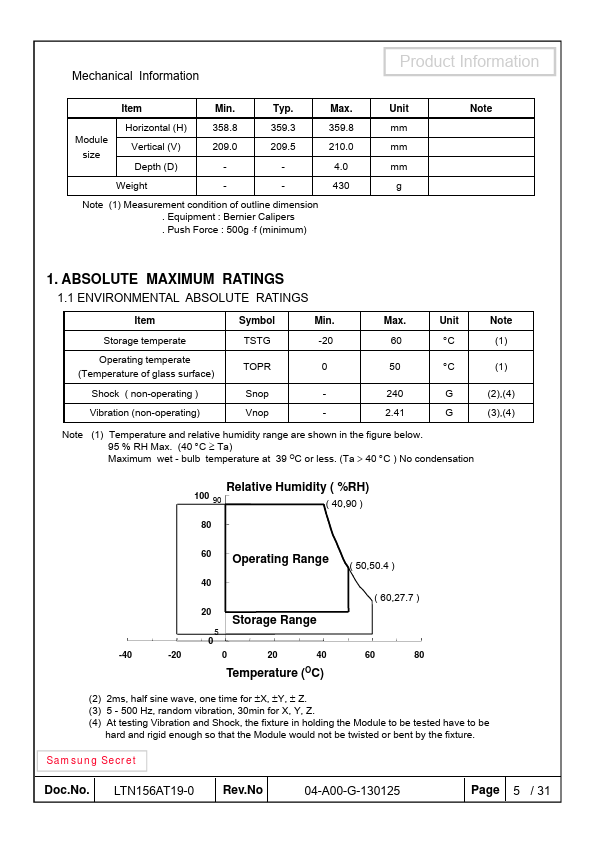

Additional preview pages of the LTN156AT19-0 datasheet.

📁 Similar Datasheet

  • LTN101AL03-801 - LCD (ETC)
  • LTN111 - LCD (NXP)
  • LTN121X1-L01 - color active matrix TFT (Thin Film Transistor) liquid crystal display (Samsung semiconductor)
  • LTN141P1-L01 - color active matrix TFT liquid crystal display (Samsung semiconductor)
  • LTN141x - color active matrix TFT liquid crystal display (Samsung semiconductor)
  • LTN141X8-L02 - TFT Display Module (ETC)
  • LTN211 - Liquid Crystal Display (Philips)
Other Datasheets by Samsung

Full PDF Text Transcription

Click to expand full text

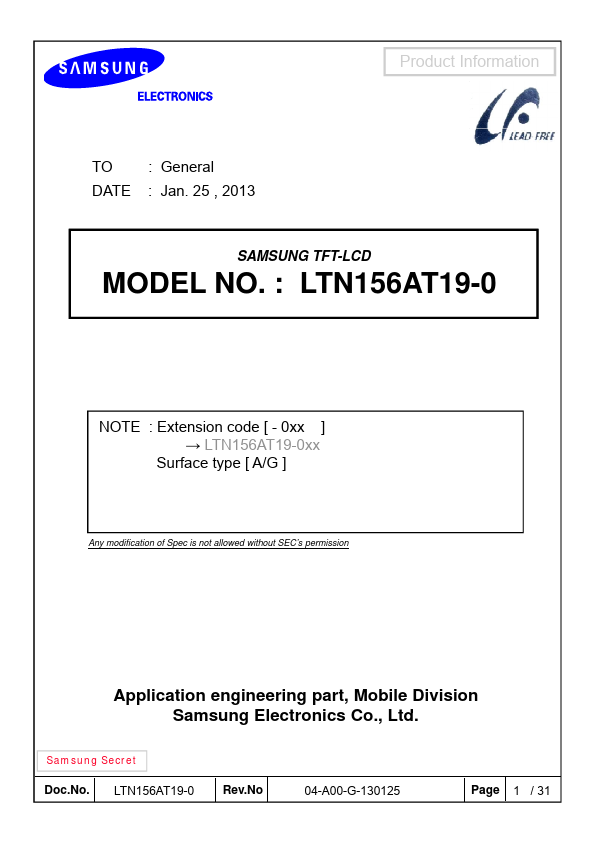

Product Information TO : General DATE : Jan. 25 , 2013 SAMSUNG TFT-LCD MODEL NO. : LTN156AT19-0 NOTE : Extension code [ - 0xx ] → LTN156AT19-0xx Surface type [ A/G ] Any modification of Spec is not allowed without SEC’s permission Application engineering part, Mobile Division Samsung Electronics Co., Ltd. Samsung Secret Doc.No. LTN156AT19-0 Rev.No 04-A00-G-130125 Page 1 / 31 CONTENTS Product Information Revision History -------------------( 3 ) General Description -------------------( 4 ) 1. Absolute Maximum Ratings 1.1 Absolute Ratings of environment 1.2 Electrical Absolute Ratings -------------------( 5 ) 2. Optical Characteristics -------------------( 7 ) 3. Electrical Characteristics 3.1 TFT LCD Module 3.2 Backlight Unit 3.
