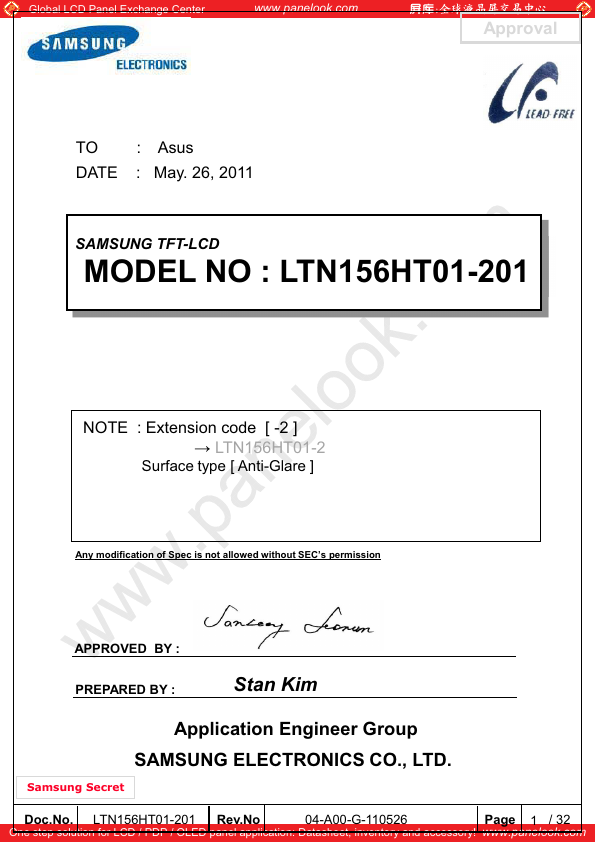

LTN156HT01-201 Overview

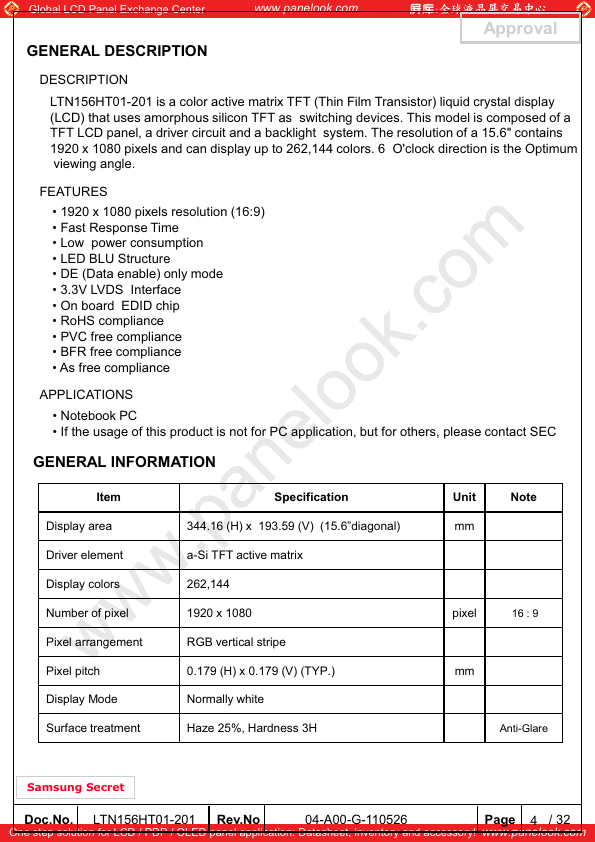

Approval DESCRIPTION LTN156HT01-201 is a color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as switching devices. This model is posed of a TFT LCD panel, a driver circuit and a backlight system. The resolution of a 15.6" contains 1920 x 1080 pixels and can display up to 262,144 colors.
LTN156HT01-201 Key Features
- 1920 x 1080 pixels resolution (16:9)
- Fast Response Time
- Low power consumption
- LED BLU Structure
- DE (Data enable) only mode
- 3.3V LVDS Interface
- On board EDID chip
- RoHS pliance
- PVC free pliance
- BFR free pliance
