LTN156KT01-0 - TFT LCD

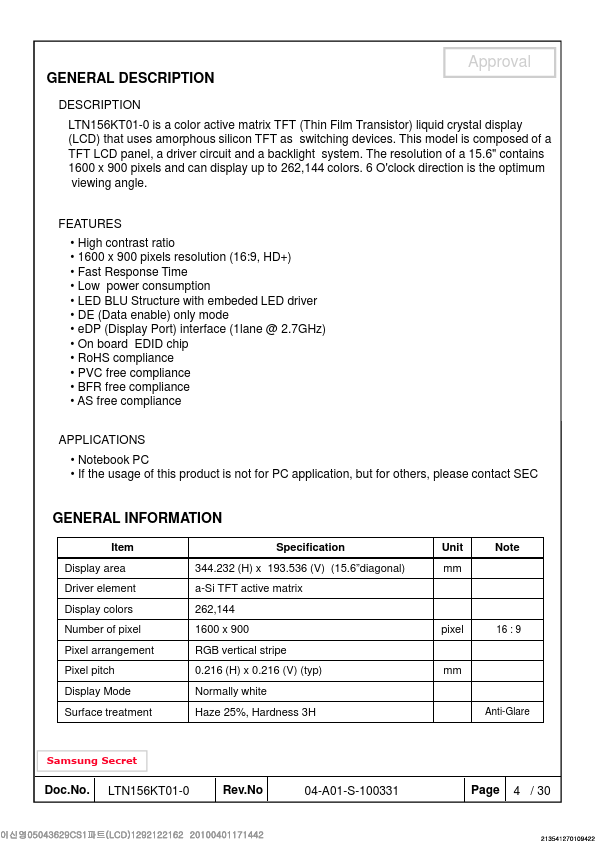

Description

1.

2.

3.

Features

  • High contrast ratio.
  • 1600 x 900 pixels resolution (16:9, HD+).
  • Fast Response Time.
  • Low power consumption.
  • LED BLU Structure with embeded LED driver.
  • DE (Data enable) only mode.
  • eDP (Display Port) interface (1lane @ 2.7GHz).
  • On board EDID chip.
  • RoHS compliance.
  • PVC free compliance.
  • BFR free compliance.
  • AS free compliance.

📥 Download Datasheet

Datasheet preview – LTN156KT01-0

📁 Similar Datasheet

  • LTN101AL03-801 - LCD (ETC)
  • LTN111 - LCD (NXP)
  • LTN121X1-L01 - color active matrix TFT (Thin Film Transistor) liquid crystal display (Samsung semiconductor)
  • LTN141P1-L01 - color active matrix TFT liquid crystal display (Samsung semiconductor)
  • LTN141x - color active matrix TFT liquid crystal display (Samsung semiconductor)
  • LTN141X8-L02 - TFT Display Module (ETC)
  • LTN211 - Liquid Crystal Display (Philips)
Other Datasheets by Samsung

Full PDF Text Transcription

Click to expand full text
Global LCD Panel Exchange Center www.panelook.com A-PDF Watermark DEMO: Purchase from www.A-PDF.com to remove the watermark Approval TO : DATE : Mar. 31. 2010 SAMSUNG TFT-LCD MODEL NO : LTN156KT01-0 NOTE : Extension code [ -0 ] ĺ LTN156KT01-0 Surface type [ Anti-Glare ] The information described in this SPEC is preliminary and can be changed without prior notice. APPROVED BY : PREPARED BY : LCD Application Engineering Part I SAMSUNG ELECTRONICS CO., LTD. 6DPVXQJ 6HFUHW Doc.No. LTN156KT01-0 Rev.No 04-A01-S-100331 Page 1 / 30 One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com Global LCD Panel Exchange Center www.panelook.
