LTN160AT06-W01 - TFT LCD

This page provides the datasheet information for the LTN160AT06-W01, a member of the LTN160AT06-B01 TFT LCD family.

Description

1.

Absolute Maximum Ratings 1.1 Absolute Ratings of environment 1.2 Electrical Absolute Ratings 2.

Optical Characteristics 3.

Features

  • High contrast ratio, high aperture structure.
  • 1366 x 768 pixels resolution (16:9).
  • Color Gamut (Typical 60%).
  • Low power consumption.
  • Fast Response Time.
  • DE(Data enable) only mode.
  • 3.3V LVDS Interface.
  • Onboard EEDID chip.
  • RoHS Compliance.
  • LED converter embedded.

📥 Download Datasheet

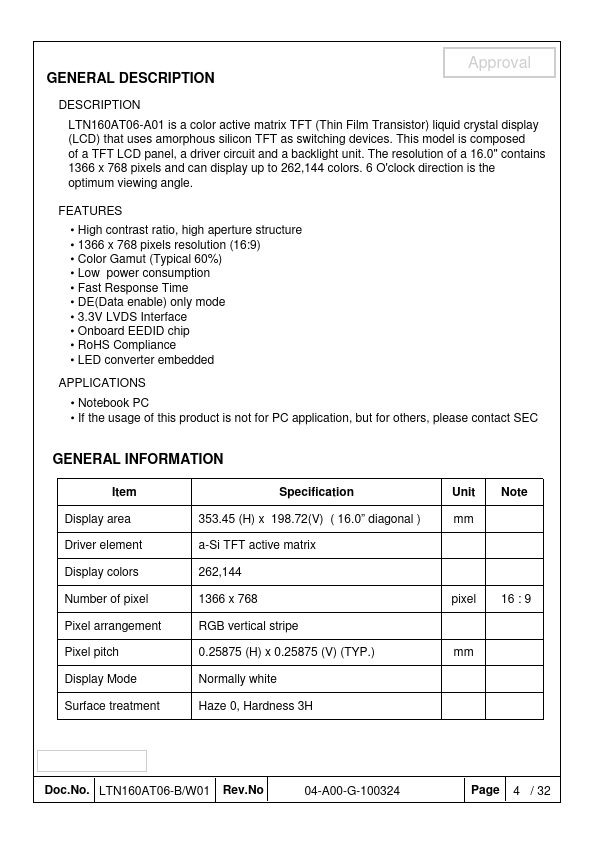

Datasheet preview – LTN160AT06-W01
