LTN170CT01-L01 - TFT LCD Module

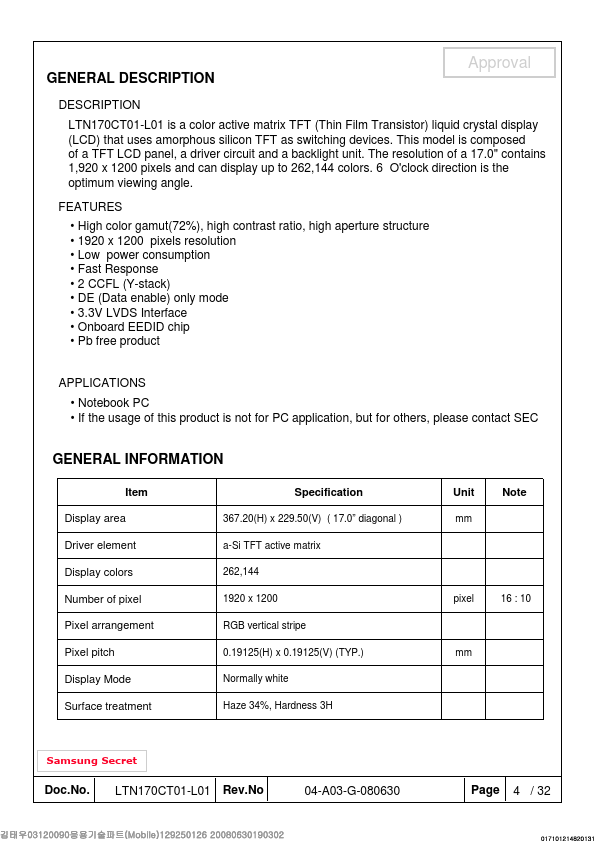

General Description

1.

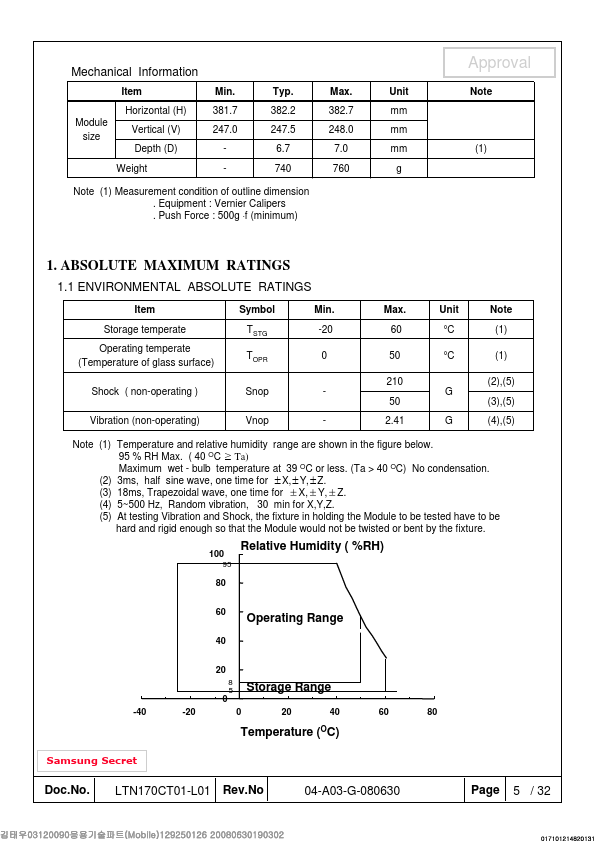

Absolute Maximum Ratings 1.1 Absolute Ratings of environment 1.2 Electrical Absolute Ratings 2.

Optical Characteristics 3.

Key Features

  • High color gamut(72%), high contrast ratio, high aperture structure.
  • 1920 x 1200 pixels resolution.
  • Low power consumption.
  • Fast Response.
  • 2 CCFL (Y-stack).
  • DE (Data enable) only mode.
  • 3.3V LVDS Interface.
  • Onboard EEDID chip.
  • Pb free product.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LTN101AL03-801 LCD ETC
LTN111 LCD NXP
LTN121X1-L01 color active matrix TFT (Thin Film Transistor) liquid crystal display Samsung semiconductor
LTN141P1-L01 color active matrix TFT liquid crystal display Samsung semiconductor
LTN141x color active matrix TFT liquid crystal display Samsung semiconductor

Other Datasheets by Samsung Semiconductor

Part Number Description
LTN170CT01-001 TFT LCD Module
LTN170CT08 TFT LCD
LTN170CT08-L01 TFT LCD
LTN170CT10 TFT LCD Module
LTN170CT10-G01 TFT LCD

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
Approval TO DATE : : June 30, 2008. SAMSUNG SAMSUNGTFT-LCD TFT-LCD MODEL MODEL NO. NO. :: LTN170CT01-L01 LTN170CT01-L01 NOTE : Extension code [ - L ] → LTN170CT01-L Surface type [ Glare ] www.jxlcd.com www.jxlcd.com Any Modification of Spec is not allowed without SEC’ permission APPROVED BY : PREPARED BY : Mobile Division, Application Engineering Part SAMSUNG ELECTRONICS CO., LTD. Samsung Secret Doc.No. LTN170CT01-L01 Rev.No 04-A03-G-080630 Page 1 / 32 Free Datasheet http://www.Datasheet4U.com Approval CONTENTS Revision History General Description 1. Absolute Maximum Ratings 1.1 Absolute Ratings of environment 1.2 Electrical Absolute Ratings 2. Optical Characteristics 3. Electrical Characteristics 3.1 TFT LCD Module 3.2 Backlight Unit 3.3 Inverter 4. Block Diagram 4.
