LTN170MT02-001 Overview

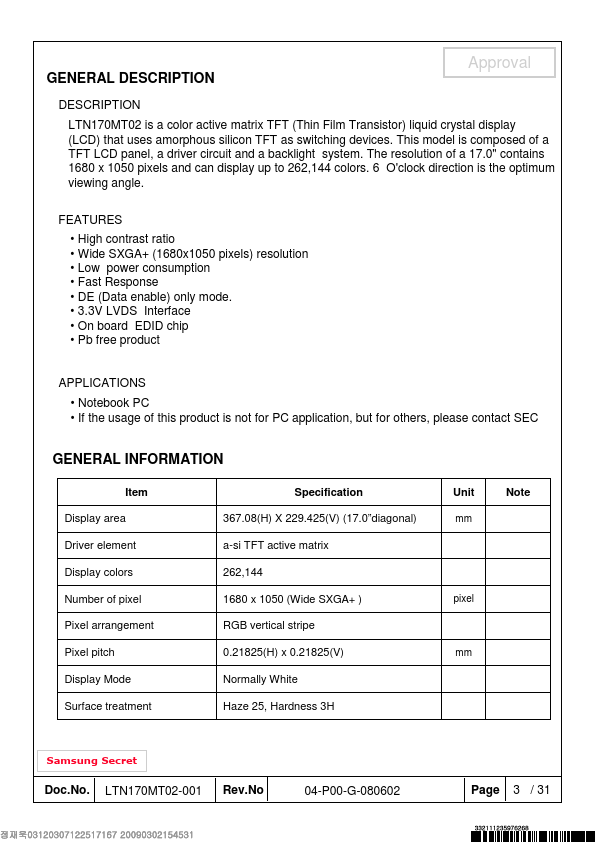

Approval DESCRIPTION LTN170MT02 is a color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as switching devices. This model is posed of a TFT LCD panel, a driver circuit and a backlight system. The resolution of a 17.0" contains 1680 x 1050 pixels and can display up to 262,144 colors.
LTN170MT02-001 Key Features
- High contrast ratio
- Wide SXGA+ (1680x1050 pixels) resolution
- Low power consumption
- Fast Response
- DE (Data enable) only mode
- 3.3V LVDS Interface
- On board EDID chip
- Pb free product
