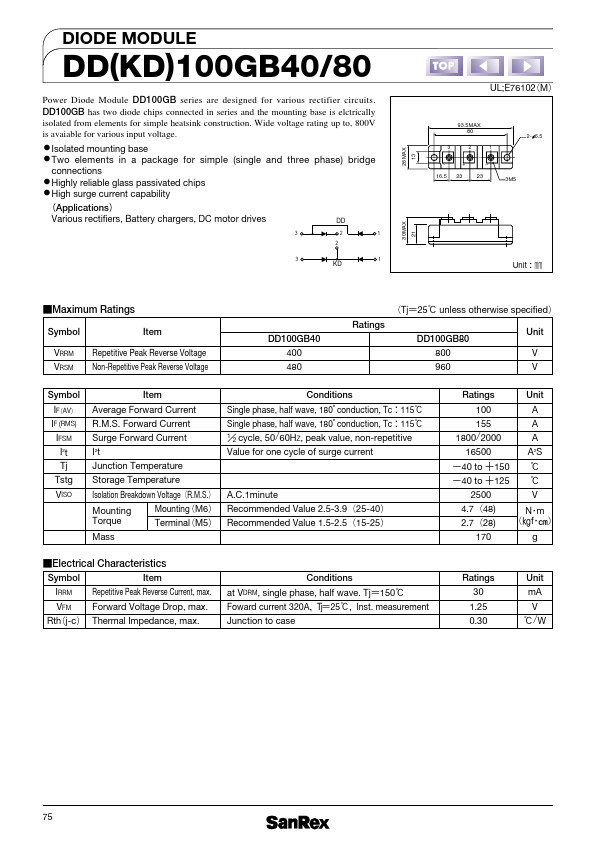

DIODE MODULE
DD(KD)100GB40/80
UL;E76102 M Power Diode Module DD100GB series are designed for various rectifier circuits. DD100GB has two diode chips connected in series and the mounting base is elctrically isolated from elements for simple heatsink construction. Wide voltage rating up to, 800V is avaiable for various input voltage. Isolated mounting base Two elements in a package for simple (single and three phase) bridge connections Highly reliable glass passivated chips High surge current capability Applications Various rectifiers, Battery chargers, DC motor drives
