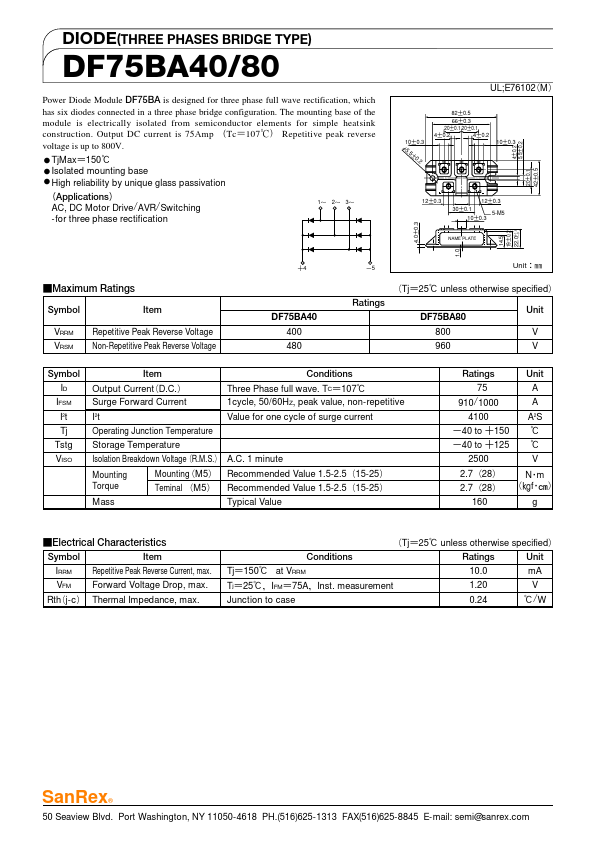

DIODE(THREE PHASES BRIDGE TYPE)
DF75BA40/80
UL;E76102 M Power Diode Module DF75BA is designed for three phase full wave rectification, which has six diodes connected in a three phase bridge configuration. The mounting base of the module is electrically isolated from semiconductor elements for simple heatsink construction. Output DC current is 75Amp Tc 107 Repetitive peak reverse voltage is up to 800V. TjMax 150 Isolated mounting base High reliability by unique glass passivation Applications AC, DC Motor Drive/AVR/Switching -for three phase rectification
Unit
Maximum Ratings
Symbol VRRM VRSM Symbol ID IFSM It
2
Item Repetitive Peak Reverse Voltage Non-Repetitive Peak Reverse Voltage Item Output Current D.C.
DF75BA40 Datasheet
