DF75BA80 - DIODE

Download the DF75BA80 datasheet PDF. This datasheet also covers the DF75BA40 variant, as both devices belong to the same diode family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DF75BA40_SanRexCorporation.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number DF75BA80
Manufacturer SanRex Corporation
File Size 113.61 KB
Description DIODE
Datasheet download datasheet DF75BA80 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DF752 Fast Recovery Diode Dynex
DF75220 Fast Recovery Diode Dynex
DF75222 Fast Recovery Diode Dynex
DF75224 Fast Recovery Diode Dynex
DF75225 Fast Recovery Diode Dynex

Other Datasheets by SanRex Corporation

Part Number Description
DF75BA40 DIODE

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

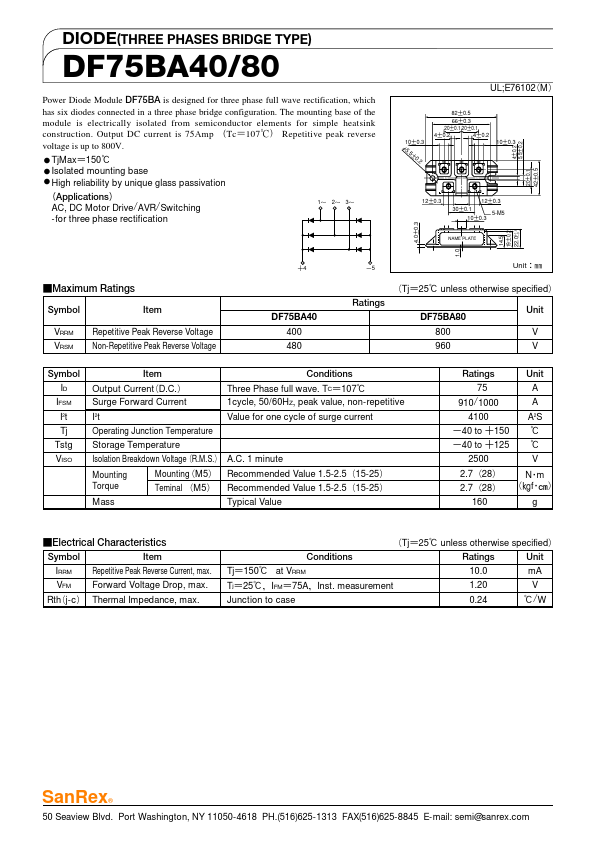

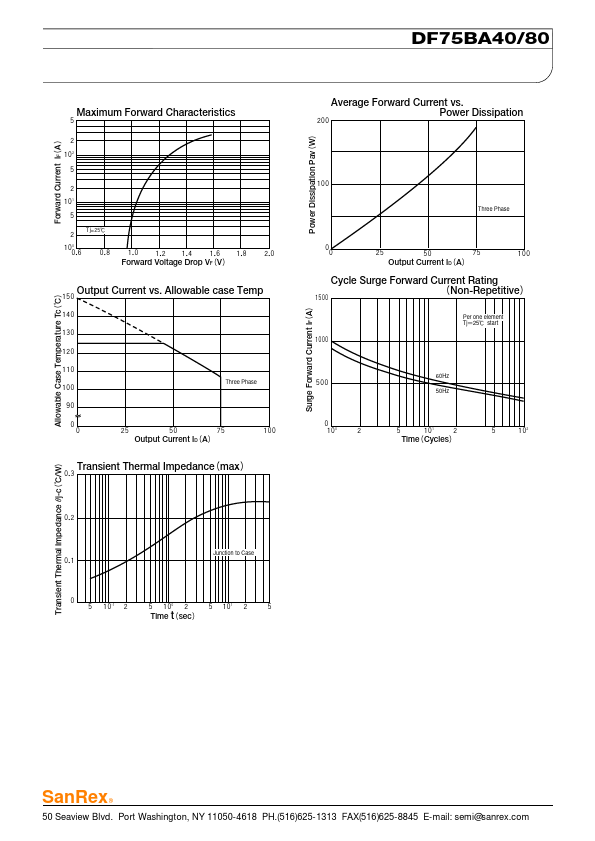

DIODE(THREE PHASES BRIDGE TYPE) DF75BA40/80 UL;E76102 M Power Diode Module DF75BA is designed for three phase full wave rectification, which has six diodes connected in a three phase bridge configuration. The mounting base of the module is electrically isolated from semiconductor elements for simple heatsink construction. Output DC current is 75Amp Tc 107 Repetitive peak reverse voltage is up to 800V. TjMax 150 Isolated mounting base High reliability by unique glass passivation Applications AC, DC Motor Drive/AVR/Switching -for three phase rectification Unit Maximum Ratings Symbol VRRM VRSM Symbol ID IFSM It 2 Item Repetitive Peak Reverse Voltage Non-Repetitive Peak Reverse Voltage Item Output Current D.C.
