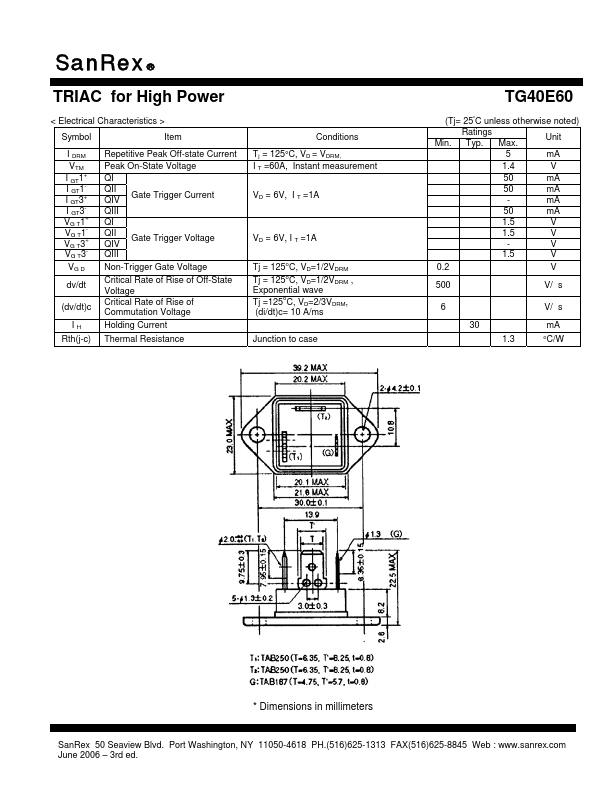

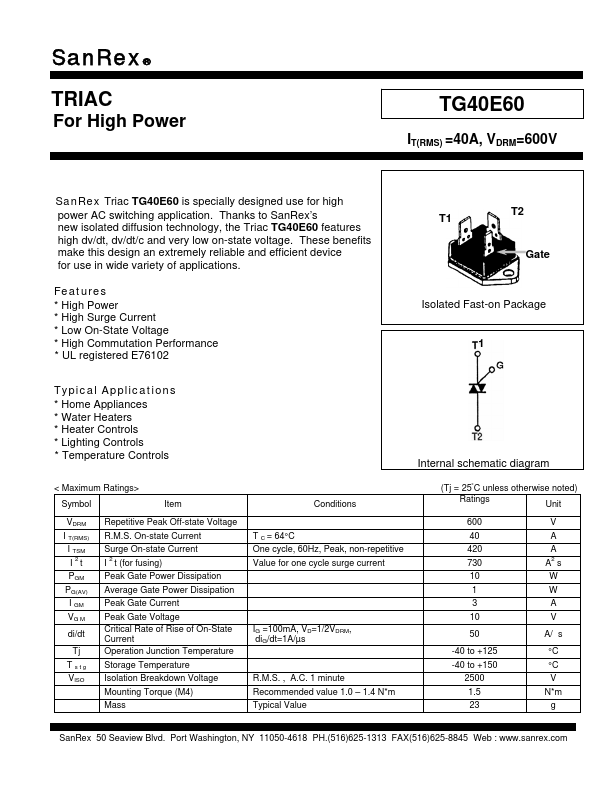

features high dv/dt, dv/dt/c and very low on-state voltage. These benefits make this design an extremely reliable and efficient device for use in wide variety of applications. Features - High Power - High Surge Current - Low On-State Voltage - High mutation Performance - UL registered E76102 T1 T2 Gate Isolated Fast-on Package 1 Typical Applications - Home Appliances - Water Heaters - Heater Controls - Lighting Controls - Temperature Controls Internal schematic diagram < Maximum Ratings> Symbol Item VDRM I T(RMS) I TSM I 2t PGM PG(AV) I GM VG M di/dt Tj T stg VISO Repetitive Peak Off-state Voltage R.M.S. On-state Current Surge On-state Current I 2 t (for fusing) Peak Gate Power Dissipation Average Gate Power Dissipation Peak Gate Current Peak Gate Voltage Critical Rate of Rise of On-State Current Operation Junction Temperature Storage Temperature Isolation Breakdown Voltage Mounting Torque (M4) Mass Conditions T C = 64°C One cycle, 60Hz, Peak, non-repetitive Value for one cycle surge current IG =100m A, VD=1/2VDRM, di G/dt=1A/µs R.M.S. , A.C. 1 minute Remended value 1.0 - 1.4 N- m Typical Value (Tj = 25°C unless otherwise noted) Ratings Unit A2 s A/Fs -40 to +125 °C -40 to...
