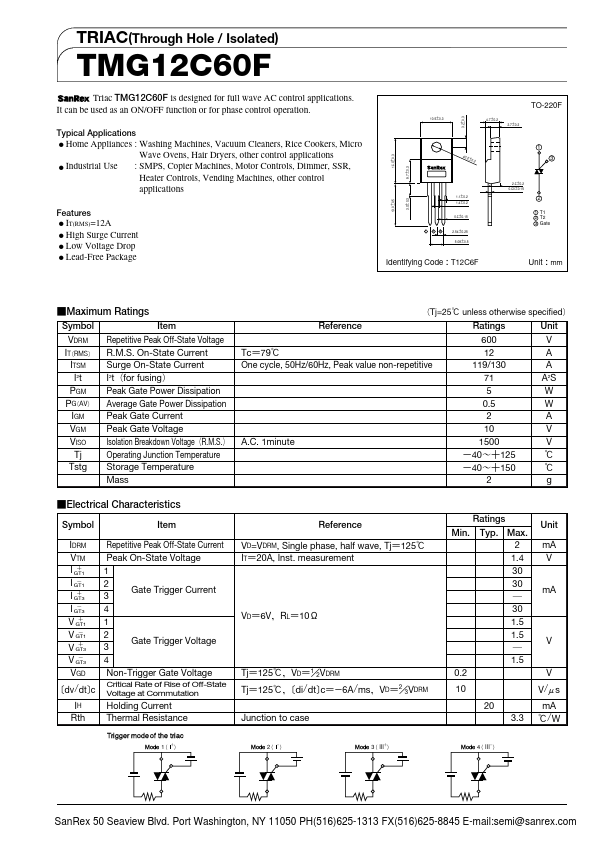

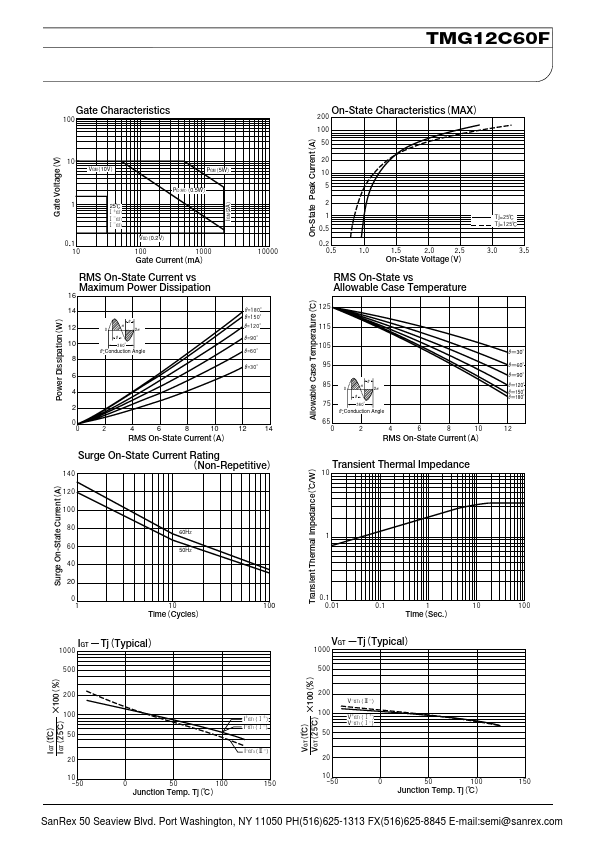

Additional preview pages of the TMG12C60F datasheet.
Product details
Features
www. DataSheet4U. com
IT(RMS)=12A High Surge Current Low Voltage Drop Lead-Free Package
Identifying Code T12C6F
Unit mm
Maximum Ratings
Symbol VDRM IT RMS ITSM I2t PGM PG AV IGM VGM VISO Tj Tstg Item Repetitive Peak Off-State Voltage R. M. S. On-State Current Surge On-State Current I2t for fusing Peak Gate Power Dissipation Average Gate Power Dissipation Peak Gate Current Peak Gate Voltage Isolation Breakdown Voltage R. M. S. Operating Junction Temperature Storage Temperature Mass Reference
Tj=25.
