TMG25CQ60F - TRIAC

Datasheet Summary

Features

  • www. DataSheet4U. com IT(RMS)=25A High Surge Current Low Voltage Drop Lead-Free Package Identifying Code T25CQ6F Unit mm Maximum Ratings Symbol VDRM IT RMS ITSM I2t PGM PG AV IGM VGM VISO Tj Tstg Item Repetitive Peak Off-State Voltage R. M. S. On-State Current Surge On-State Current I2t for fusing Peak Gate Power Dissipation Average Gate Power Dissipation Peak Gate Current Peak Gate Voltage Isolation Breakdown Voltage R. M. S. Operating Junction Temperature Storage Temperature Mass Reference Tc 93.

📥 Download Datasheet

Datasheet preview – TMG25CQ60F

Datasheet Details

Part number TMG25CQ60F
Manufacturer SanRex Corporation
File Size 524.25 KB
Description TRIAC
Datasheet download datasheet TMG25CQ60F Datasheet
Additional preview pages of the TMG25CQ60F datasheet.

📁 Similar Datasheet

  • TMG2D60F - Thyristor (INCHANGE)
  • TMG0165 - Green low-power switching power supply controller (Titan Micro)
  • TMG0265 - Green low-power switching power supply controller (Titan Micro)
  • TMG0321 - Green low-power switching power supply controller (Titan Micro)
  • TMG0365 - Green low-power switching power supply controller (Titan Micro)
  • TMG0565 - Green low-power switching power supply controller (Titan Micro)
  • TMG07105 - AC/DC Power Modules (TRACO POWER)
  • TMG07112 - AC/DC Power Modules (TRACO POWER)
  • TMG07115 - AC/DC Power Modules (TRACO POWER)
  • TMG07124 - AC/DC Power Modules (TRACO POWER)
Other Datasheets by SanRex Corporation

Full PDF Text Transcription

Click to expand full text

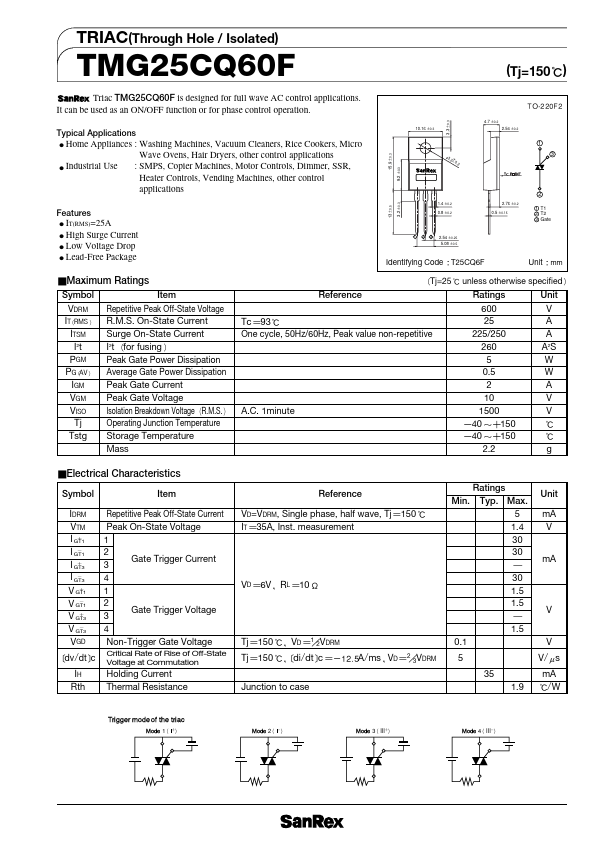

TRIAC(Through Hole / Isolated) TMG25CQ60F Triac TMG25CQ60F is designed for full wave AC control applications. It can be used as an ON/OFF function or for phase control operation. Typical Applications (Tj=150 ) Home Appliances : Washing Machines, Vacuum Cleaners, Rice Cookers, Micro Wave Ovens, Hair Dryers, other control applications Industrial Use : SMPS, Copier Machines, Motor Controls, Dimmer, SSR, Heater Controls, Vending Machines, other control applications Features www.DataSheet4U.com IT(RMS)=25A High Surge Current Low Voltage Drop Lead-Free Package Identifying Code T25CQ6F Unit mm Maximum Ratings Symbol VDRM IT RMS ITSM I2t PGM PG AV IGM VGM VISO Tj Tstg Item Repetitive Peak Off-State Voltage R.M.S.
