DD60HB160
DD60HB160 is DIODE MODULE manufactured by SanRex Corporation.
- Part of the DD60HB120 comparator family.
- Part of the DD60HB120 comparator family.

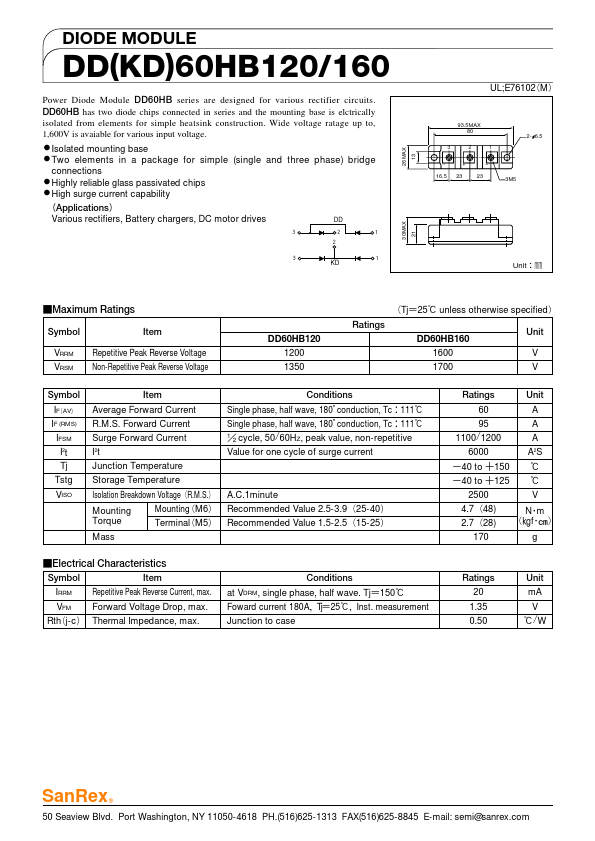

DIODE MODULE
DD(KD)60HB120/160
Power Diode Module DD60HB series are designed for various rectifier circuits. DD60HB has two diode chips connected in series and the mounting base is elctrically isolated from elements for simple heatsink construction. Wide voltage ratage up to, 1,600V is avaiable for various input voltage.
˔ Isolated mounting base ˔ Two elements in a package for simple (single and three phase) bridge connections ˔ Highly reliable glass passivated chips ˔ High surge current capability
ʢApplicationsʣ
Various rectifiers, Battery chargers, DC motor drives
%%
̏
̎
̍
̎
̏
̍
,%
30MAX 21
26MAX 13
UL;E76102ʢMʣ
93.5MAX 80
2-6.5
~
+
16.5 23
- 23
3M5
Unitɿa
˙Maximum Ratings
Symbol
Item
VRRM VRSM
Repetitive Peak Reverse Voltage Non-Repetitive Peak Reverse...
