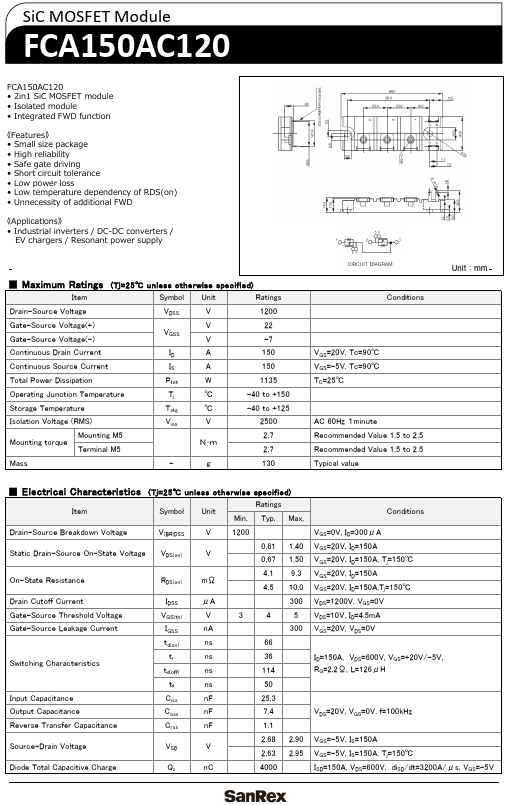

FCA150AC120
FCA150AC120 is SiC MOSFET Module manufactured by SanRex Corporation.
SiC MOSFET Module
- 2in1 SiC MOSFET module
- Isolated module
- Integrated FWD function
《Features
》
- Small size package
- High reliability
- Safe gate driving
- Short circuit tolerance
- Low power loss
- Low temperature dependency of RDS(on)
- Unnecessity of additional FWD
《Applications》
- Industrial inverters / DC-DC converters /
EV chargers / Resonant power supply
- Maximum Ratings (Tj=25℃ unless otherwise specified)
Item
Symbol Unit
Ratings
Drain-Source Voltage Gate-Source Voltage(+) Gate-Source Voltage(-)
VDSS
V VGSS
1200 22 -7
Continuous Drain Current
Continuous Source Current
Total Power Dissipation
Operating Junction Temperature
Storage...
