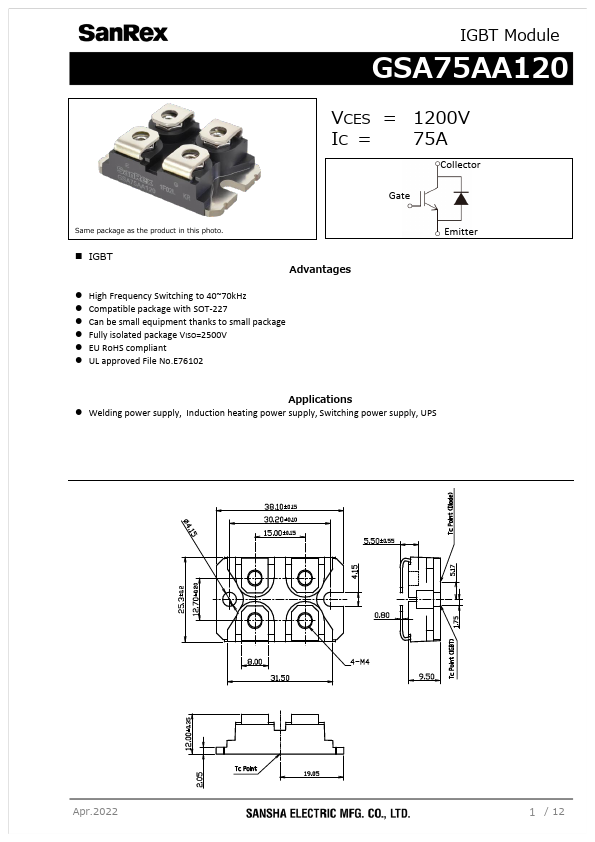

GSA75AA120
GSA75AA120 is IGBT Module manufactured by SanRex Corporation.
IGBT Module
VCES = 1200V IC ＝ 75A
Collector
Gate
Same package as the product in this photo.
- IGBT
Advantages
- High Frequency Switching to 40~70k Hz
- patible package with SOT-227
- Can be small equipment thanks to small package
- Fully isolated package VISO=2500V
- EU Ro HS pliant
- UL approved File No.E76102
Emitter
Applications
- Welding power supply, Induction heating power supply, Switching power supply, UPS
Apr.2022
1 / 12

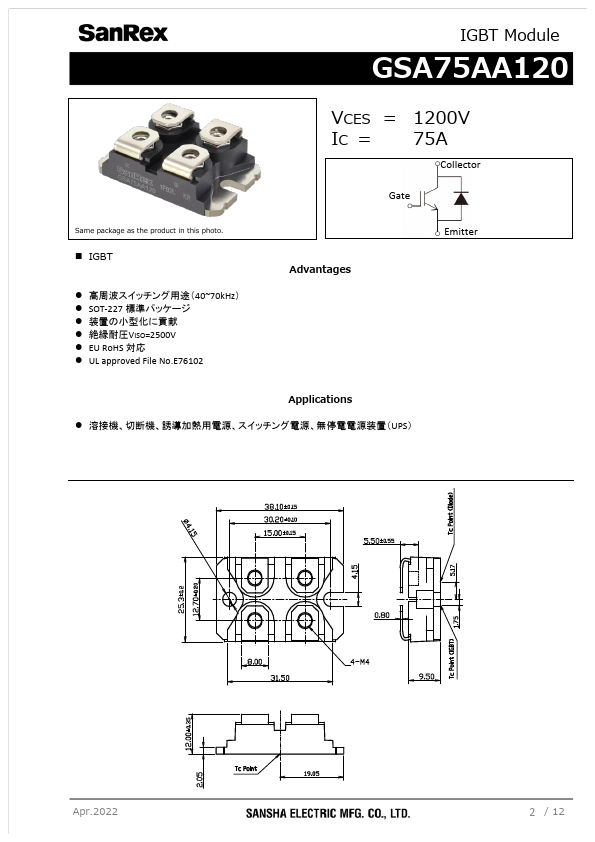

IGBT Module
Same package as the product in this photo.
- IGBT
- 高周波スイッチング用途（40~70k Hz）
- SOT-227 標準パッケージ
- 装置の小型化に貢献
- 絶縁耐圧VISO=2500V
- EU Ro HS 対応
- UL approved File No.E76102
VCES = 1200V IC ＝ 75A
Collector...
