PWB60A40 - THYRISTOR MODULE

This page provides the datasheet information for the PWB60A40, a member of the PWB60A THYRISTOR MODULE family.

📥 Download Datasheet

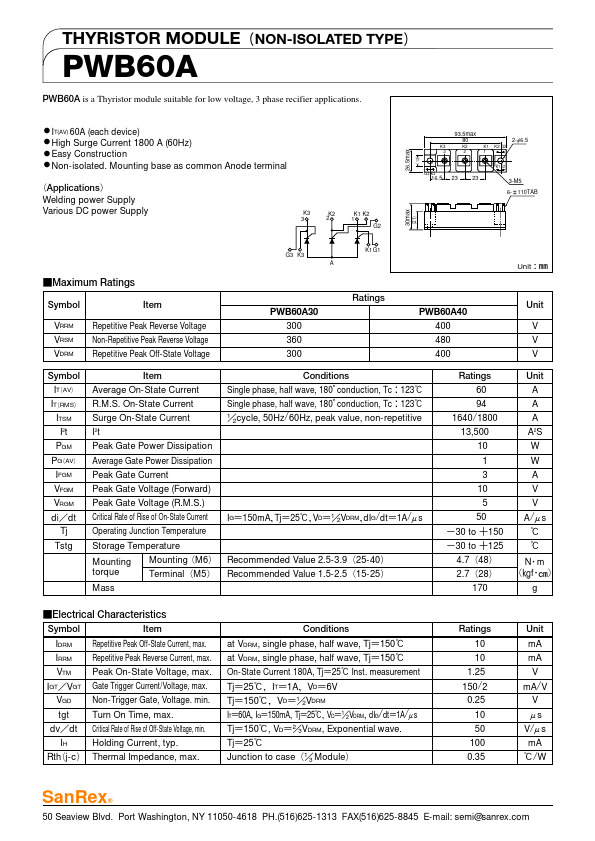

Datasheet preview – PWB60A40

Datasheet Details

Part number PWB60A40
Manufacturer SanRex
File Size 446.78 KB
Description THYRISTOR MODULE
Datasheet download datasheet PWB60A40 Datasheet

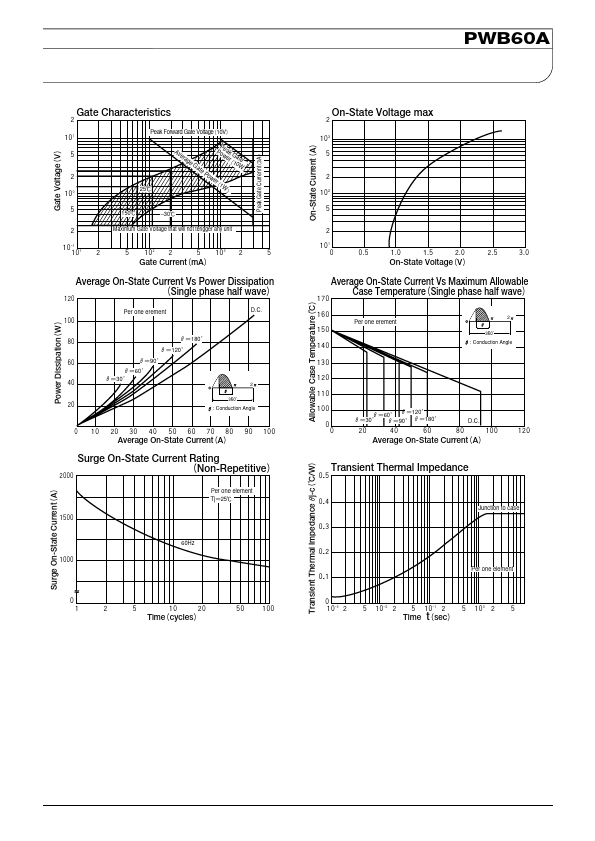

Additional preview pages of the PWB60A40 datasheet.

📁 Similar Datasheet

  • PWB60A40 - Non-isolated Thyristor Module (Naina Semiconductor)
  • PWB60A - THYRISTOR MODULE (SanRex Corporation)
  • PWB60A - Non-isolated Thyristor Module (Naina Semiconductor)
  • PWB60A30 - Non-isolated Thyristor Module (Naina Semiconductor)
  • PWB - Thin Film Power Resistors (Vishay)
  • PWB-1-AL - Surface Mount Wideband RF Transformers (Coilcraft)
  • PWB-1-BL - Surface Mount Wideband RF Transformers (Coilcraft)
  • PWB-1-CL - Surface Mount Wideband RF Transformers (Coilcraft)
  • PWB-1.5-AL - Surface Mount Wideband RF Transformers (Coilcraft)
  • PWB-1.5-BL - Surface Mount Wideband RF Transformers (Coilcraft)
Other Datasheets by SanRex

Full PDF Text Transcription

Click to expand full text
( DataSheet : www.DataSheet4U.com ) THYRISTOR MODULE NON-ISOLATED TYPE PWB60A PWB60A is a Thyristor module suitable for low voltage, 3 phase recifier applications. IT(AV) 60A (each device) High Surge Current 1800 A (60Hz) Easy Construction Non-isolated. Mounting base as common Anode terminal Applications Welding power Supply Various DC power Supply Maximum Ratings Symbol Item VRRM VRSM VDRM Repetitive Peak Reverse Voltage Non-Repetitive Peak Reverse Voltage Repetitive Peak Off-State Voltage PWB60A30 300 360 300 Ratings PWB60A40 400 480 400 Unit A Unit V V V Symbol IT AV IT RMS ITSM I2t PGM PG AV IFGM VFGM VRGM di dt Tj Tstg Item Average On-State Current R.M.S.
