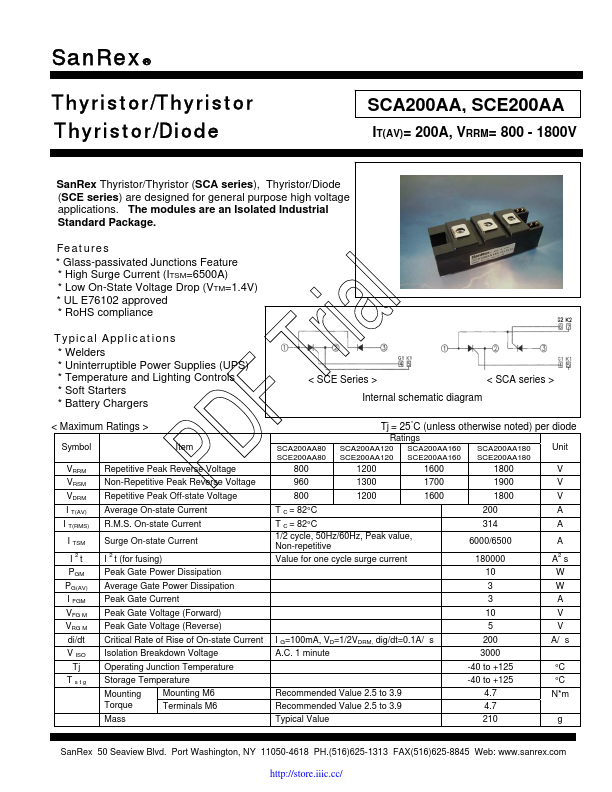

SCA200AA
SCA200AA is Thyristor/Thyristor Thyristor/Diode manufactured by SanRex Corporation.
San Rex®
Thyristor/Thyristor Thyristor/Diode
SCA200AA, SCE200AA
IT(AV)= 200A, VRRM= 800
- 1800V
San Rex Thyristor/Thyristor (SCA series), Thyristor/Diode (SCE series) are designed for general purpose high voltage applications. The modules are an Isolated Industrial Standard Package.
PDF Trial Features
- Glass-passivated Junctions Feature
- High Surge Current (ITSM=6500A)
- Low On-State Voltage Drop (VTM=1.4V)
- UL E76102 approved
- Ro HS pliance
Typical Applications
- Welders
- Uninterruptible Power Supplies (UPS)
- Temperature and Lighting Controls
- Soft Starters
- Battery Chargers
< Maximum Ratings >
Symbol
Item
VRRM VRSM
Repetitive Peak Reverse Voltage Non-Repetitive Peak Reverse Voltage
< SCE Series >
< SCA series >
Internal schematic diagram
SCA200AA80 SCE200AA80
Tj = 25°C (unless otherwise noted) per diode
Ratings
SCA200AA120 SCA200AA160...
