Sanken 2SC2837
The 2SC2837 is an NPN transistor of 150 V, 10 A. The product has constant hFE characteristics in a wide current range, providing high-quality audio sounds.| Part No. | 2SC2837 |
|---|---|
| Datasheet | 2SC2837 Download |
| Manufacturer |  Sanken |
| Description | Silicon NPN Epitaxial Planar Transistor |
| Buy | Stock & Price |
DESCRIPTION
Package The 2SC2837 is an NPN transistor of 150 V, 10 A. TO3P-3L (4)FEATURES
● Complementary to 2SA1186● LAPT (Linear Amplifier Power Transistor)
● High Transition Frequency
● Bare Lead Frame: Pb-free (RoHS Compliant)
● VCEO----------------------------------------------------- 150 V
● IC----------------------------------------------------------- 10 A
● fT-------------------------------------------------------70 MHz
● PC --------------------------------------------------------100 W Designs (1) (2) (3) ew Application Not Recommended for N
● Audio Power Amplifer (2)(4) (1) (3) (1) Base (2) Collector (3) Emitter (4) Collector Not to scale 2SC2837-DSE Rev.1.1 SANKEN ELCTRIC CO., LTD. 1 Nov. 14, 2017 © SANKEN ELECTRIC CO., LTD. 2017 2SC2837

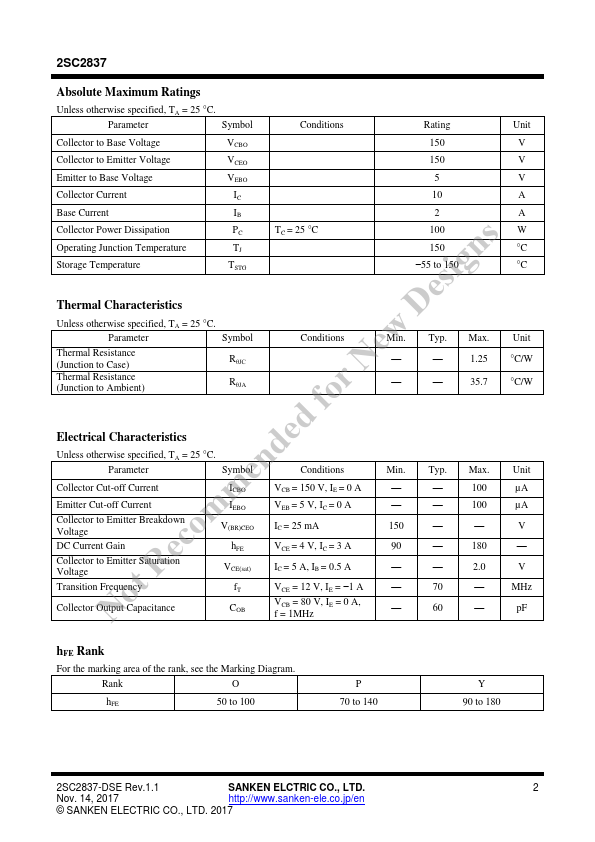

ABSOLUTE MAXIMUM RATINGS
Unless otherwise specified, TA = 25 °C. Parameter Symbol Conditions Rating Unit Collector to Base Voltage Collector to Emitter Voltage Emitter to Base Voltage VCBO VCEO VEBO 150 V 150 V 5 V Collector Current IC 10 A...
