Sanken DENS-1156S
The DENS-1156S is a 600 V, 15 A, fast recovery TO220-2L diode. The maximum VF of 1.3 V and the maximum trr (3) of 50 ns (IF : IRP = 1 : 2) are realized by optimizing the trade-off relationship between VF and trr. The low thermal resistance package achieves high performance in terms of heat dissipation.| Part No. | DENS-1156S |
|---|---|
| Datasheet | DENS-1156S Download |
| Manufacturer |  Sanken |
| Description | Fast Recovery Diode |
| Buy | Stock & Price |
DESCRIPTION
PackageFEATURES
● VRSM ---------------------------------------------------- 600 V● IF(AV)------------------------------------------------------- 15 A
● VF--------------------------------------------------------- 1.3 V
● trr1 (IF = IRP) -------------------------------------------- 100 ns
● Bare Lead Frame: Pb-free (RoHS Compliant) (1) (3) s (1) (2) sign(1) Cathode e(2) (2) Anode D (3) Cathode
APPLICATIONS
w● PFC Crcuit (DCM and CRM) e
● Freewheel Diode Not Recommended for N (Offline Buck and Buck-boost Converter) Not to scale DENS-1156S-DSE Rev.1.2 SANKEN ELECTRIC CO., LTD. 1 Jun. 28, 2019 © SANKEN ELECTRIC CO., LTD. 2015 DENS-1156S

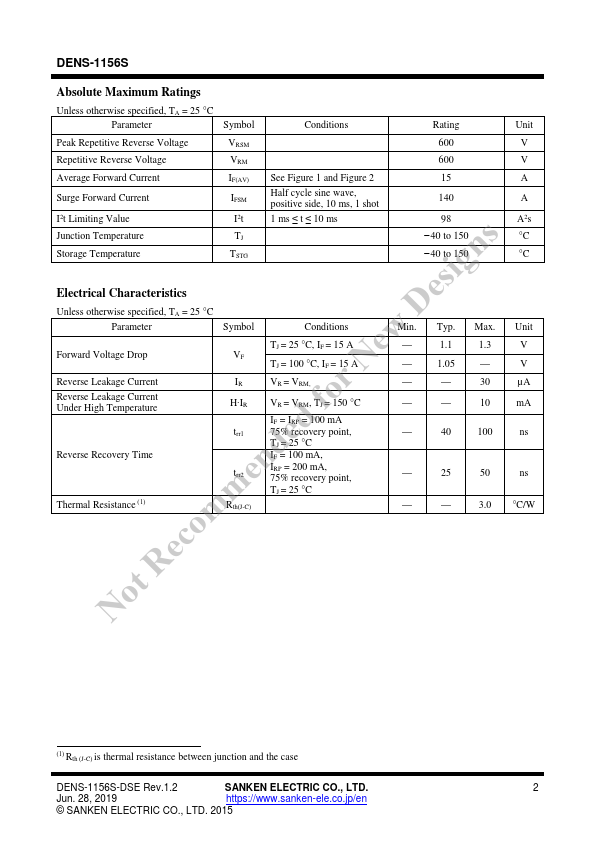

ABSOLUTE MAXIMUM RATINGS
Unless otherwise specified, TA = 25 °C Parameter Symbol Conditions Rating Unit Peak Repetitive Reverse Voltage VRSM 600 V Repetitive Reverse Voltage VRM 600 V Average Forward Current IF(AV) See Figure 1 and Figure 2 15 Surge Forward Current IFSM Half cycle sine wave, positive side, 10 ms, 1 shot 140 I2t Limiting Value...
