Sanken FMX-G26S
Silicon Diode
| Part No. | FMX-G26S |
|---|---|
| Datasheet | FMX-G26S Download |
| Manufacturer |  Sanken |
| Description | Silicon Diode |
| Buy | Stock & Price |
APPLICATIONS

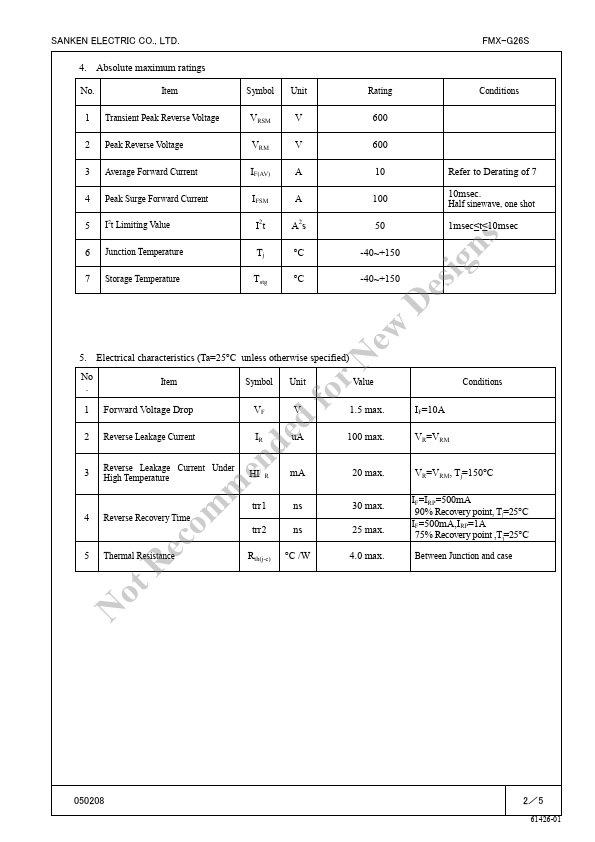

High Frequency Rectification 3. Flammability UL94V-0(Equivalent) Designs Not Recommended for New 050208 1／5 61426-01 SANKEN ELECTRIC CO., LTD. FMX-G26S 4. Absolute maximum ratings No. Item Symbol Unit Rating Conditions 1 Transient Peak Reverse Voltage VRSM V 600 2 Peak Reverse Voltage VRM V 600 3 Average Forward Current IF(AV) A 10 Refer to Derating of 7 4 Peak Surge Forward Current IFSM A 100 10msec. Half sinewave, one shot 5 I2t Limiting Value 6 Junction Temperature 7 Storage Temperature I2t A2s Tj °C Tstg °C 50 -40~+150 -40~+150 Designs 1msec≤t≤10msec ew 5. Electrical characteristics (Ta=25°C unless otherwise specified) N No r . Item Symbol Unit Value fo 1 Forward Voltage Drop VF V 1.5 max. ed 2 Reverse Leakage Current IR uA 100 max. end 3 Reverse Leakage Current Under High Temperature HI R mA mm 4 Reverse Recovery Time trr1 ns trr2 ns Not Reco 5 Thermal Resistance Rth(j-c) °C /W 20 max. 30 max. 25 max. 4.0 max. Conditions IF=10A VR=VRM VR=VRM, Tj=150°C IF=IRP=500mA 90% Recovery point, Tj=25°C IF=500mA,IRP=1A 75% Recovery point ,Tj=25°C Between Junction and case 050208 2／5 61426-01 SANKEN ELECTRIC CO., LTD.
