Sanken RK34
Silicon Schottky Barrier Diode
| Part No. | RK34 |
|---|---|
| Datasheet | RK34 Download |
| Manufacturer |  Sanken |
| Description | Silicon Schottky Barrier Diode |
| Buy | Stock & Price |
APPLICATIONS

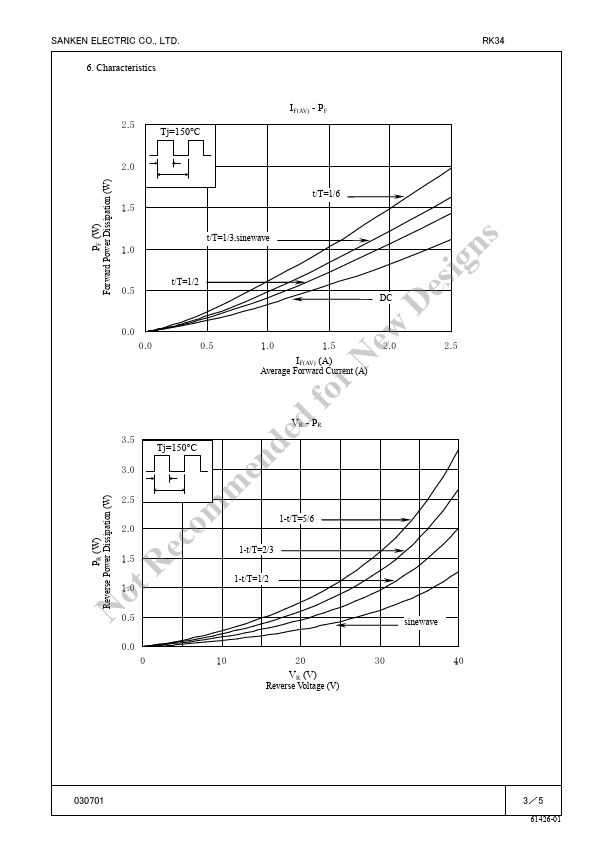

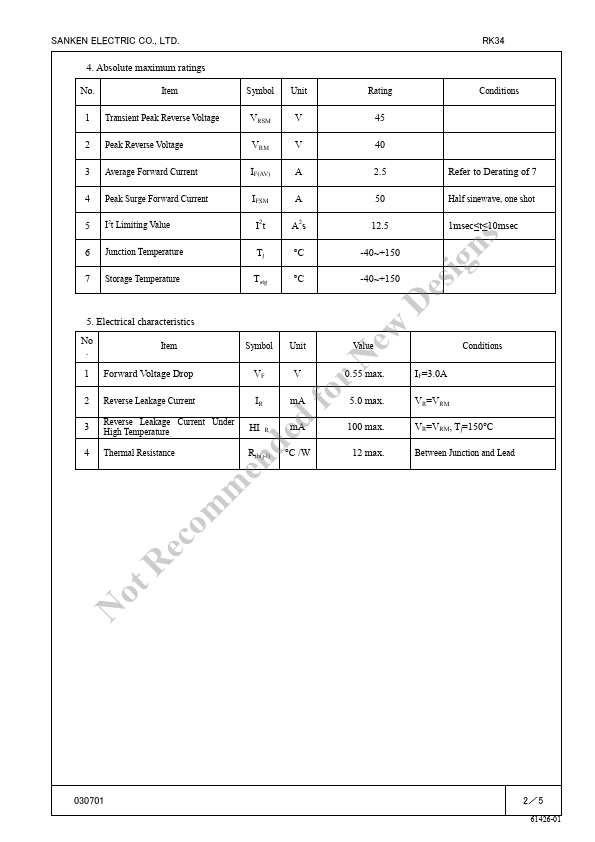

High Frequency Rectification 3. Flammability UL94V-0(Equivalent) Designs Not Recommended for New 030701 1／5 61426-01 SANKEN ELECTRIC CO., LTD. RK34 4. Absolute maximum ratings No. Item Symbol Unit Rating Conditions 1 Transient Peak Reverse Voltage VRSM V 45 2 Peak Reverse Voltage VRM V 40 3 Average Forward Current IF(AV) A 2.5 Refer to Derating of 7 4 Peak Surge Forward Current IFSM A 50 Half sinewave, one shot 5 I2t Limiting Value 6 Junction Temperature 7 Storage Temperature I2t A2s Tj °C Tstg °C 12.5 -40~+150 -40~+150 Designs 1msec≤t≤10msec 5. Electrical characteristics w No e . Item N 1 Forward Voltage Drop Symbol Unit VF V or 2 Reverse Leakage Current IR mA d f 3 Reverse Leakage Current Under High Temperature HI R mA Not Recommende 4 Thermal Resistance Rth(j-l) °C /W Value 0.55 max. 5.0 max. 100 max. 12 max. Conditions IF=3.0A VR=VRM VR=VRM, Tj=150°C Between Junction and Lead 030701 2／5 61426-01 SANKEN ELECTRIC CO., LTD. 6. Characteristics RK34 PF (W) Forward Power Dis...
