Sanken SELU2810C-S
The SELU2810C-S is a through-hole amber LED.| Part No. | SELU2810C-S |
|---|---|
| Datasheet | SELU2810C-S Download |
| Manufacturer |  Sanken |
| Description | 2V Through-hole LED |
| Buy | Stock & Price |

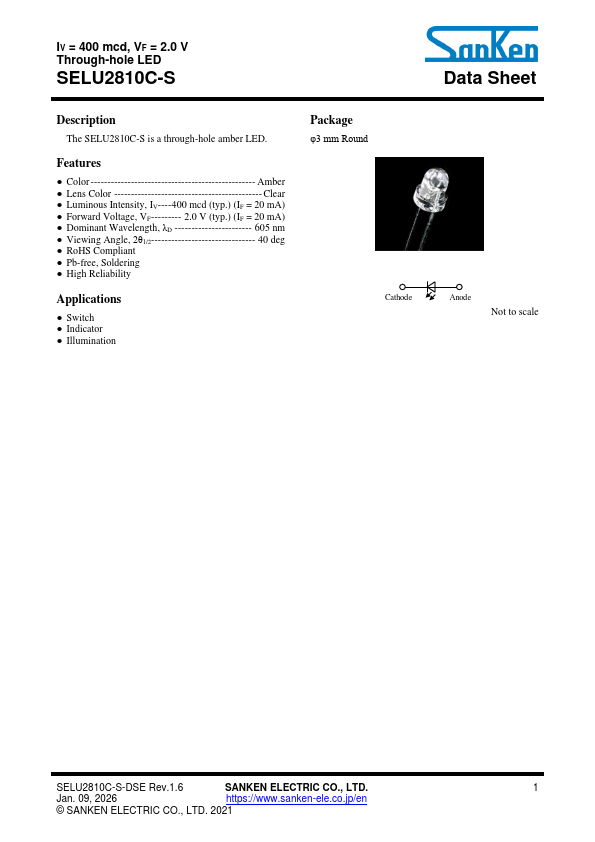

DESCRIPTION
The SELU2810C-S is a through-hole amber LED.FEATURES
● Color ------------------------------------------------- Amber● Lens Color -------------------------------------------- Clear
● Luminous Intensity, IV----400 mcd (typ.) (IF = 20 mA)
● Forward Voltage, VF--------- 2.0 V (typ.) (IF = 20 mA)
● Dominant Wavelength, λD ----------------------- 605 nm
● Viewing Angle, 2θ1/2------------------------------- 40 deg
● RoHS Compliant
● Pb-free, Soldering
● High Reliability
APPLICATIONS
● Switch● Indicator
● Illumination Package φ3 mm Round Cathode Anode Not to scale SELU2810C-S-DSE Rev.1.6 SANKEN ELECTRIC CO., LTD. 1 Jan. 09, 2026 © SANKEN ELECTRIC CO., LTD. 2021 SELU2810C-S

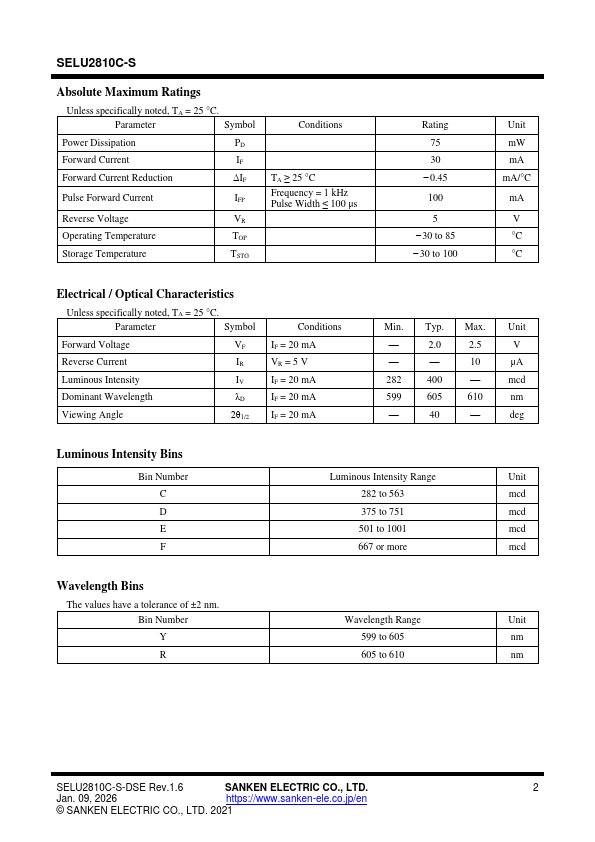

ABSOLUTE MAXIMUM RATINGS
Unless specifically noted, TA = 25 °C. Parameter Symbol Power Dissipation PD Forward Current IF Forward Current Reduction ΔIF Pulse Forward Current IFP Reverse Voltage VR Operating Temperature TOP Storage Temperature TSTG Conditions TA ≥ 25 °C Frequency = 1 kHz Pulse Width ≤ 100 μs Rating 75 30 − 0.45 100 5 − 30 to 85 −30 to 100 Unit mW mA mA/°C mA V °C °C Electrical / Optical Characteristics Unless specifically noted, TA = 25 °C.
