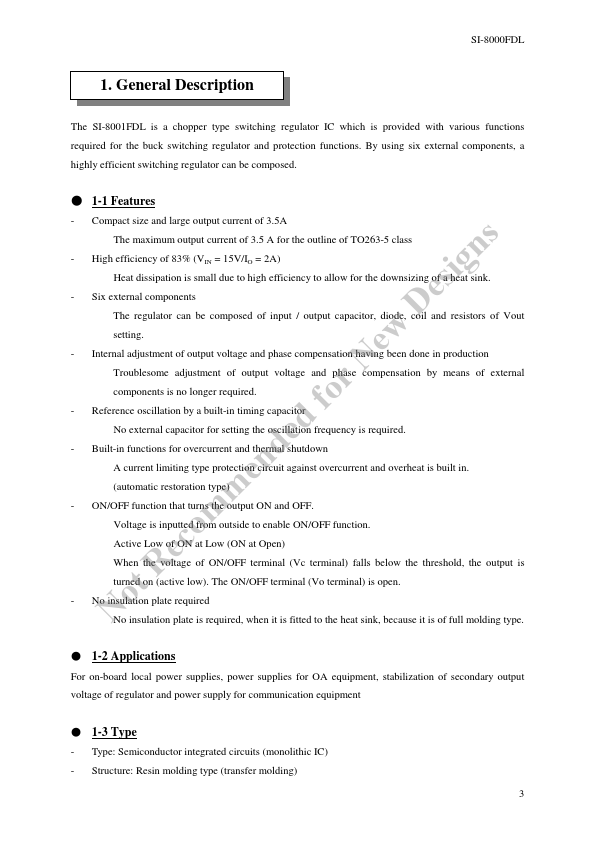

GENERAL DESCRIPTION
● 1-1 FEATURES
- - Compact size and large output current of 3.5A s The maximum output current of 3.5 A for the outline of TO263-5 class n High efficiency of 83% (VIN = 15V/IO = 2A) ig Heat dissipation is small due to high efficiency to allow for the downsizing of a heat sink. es Six external components D The regulator can be composed of input / output capacitor, diode, coil and resistors of Vout setting. ew Internal adjustment of output voltage and phase compensation having been done in production N Troublesome adjustment of output voltage and phase compensation by means of external r components is no longer required. fo Reference oscillation by a built-in timing capacitor d No external capacitor for setting the oscillation frequency is required. e Built-in functions for overcurrent and thermal shutdown nd A current limiting type protection circuit against overcurrent and overheat is built in. e (automatic restoration type) m ON/OFF function that turns the output ON...
