Sanken SI-8000SS

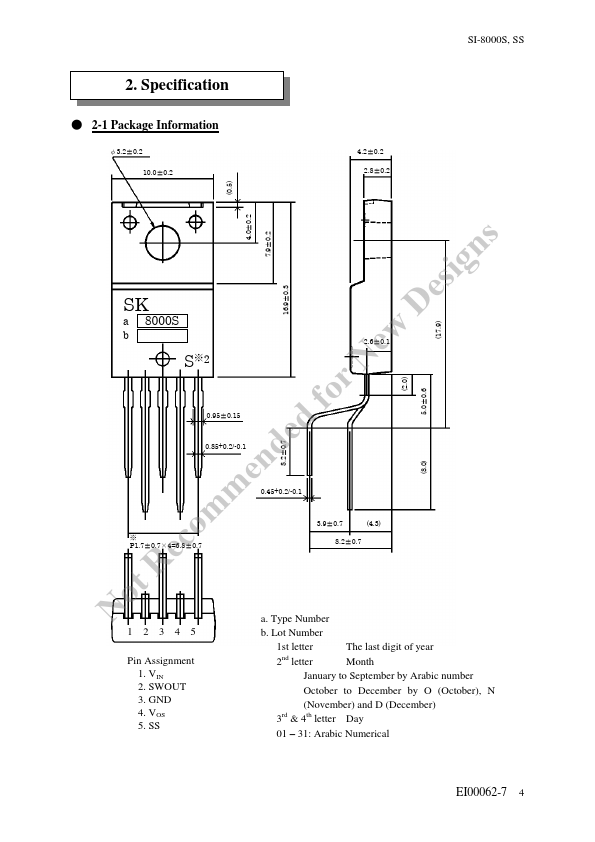

the SI-8000SS, the mark “S” is stamped on the right side of SK mark.| Part No. | SI-8000SS |
|---|---|
| Datasheet | SI-8000SS Download |
| Manufacturer |  Sanken |
| Description | Full Mold Type Chopper Type Switching Regulator IC |
| Buy | Stock & Price |

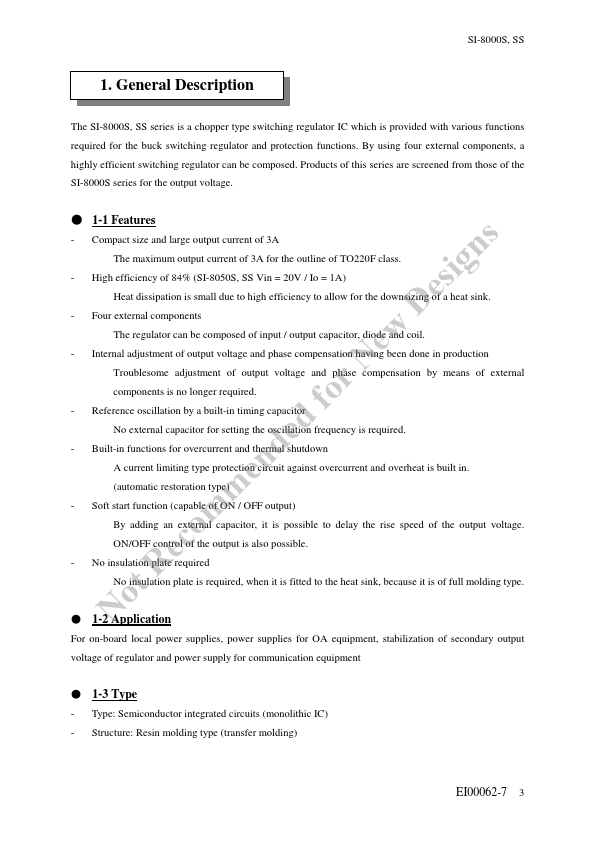

GENERAL DESCRIPTION
The SI-8000S, SS series is a chopper type switching regulator IC which is provided with various functions required for the buck switching regulator and protection functions. By using four external components, a highly efficient switching regulator can be composed. Products of this series are screened from those of the SI-8000S series for the output voltage.● 1-1
FEATURES
s - Compact size and large output current of 3A n The maximum output current of 3A for the outline of TO220F class. ig - High efficiency of 84% (SI-8050S, SS Vin = 20V / Io = 1A) es Heat dissipation is small due to high efficiency to allow for the downsizing of a heat sink. D - Four external components The regulator can be composed of input / output capacitor, diode and coil. ew - Internal adjustment of output voltage and phase compensation having been done in production N Troublesome adjustment of output voltage and phase compensation by means of external r components is no longer required. fo - R...
