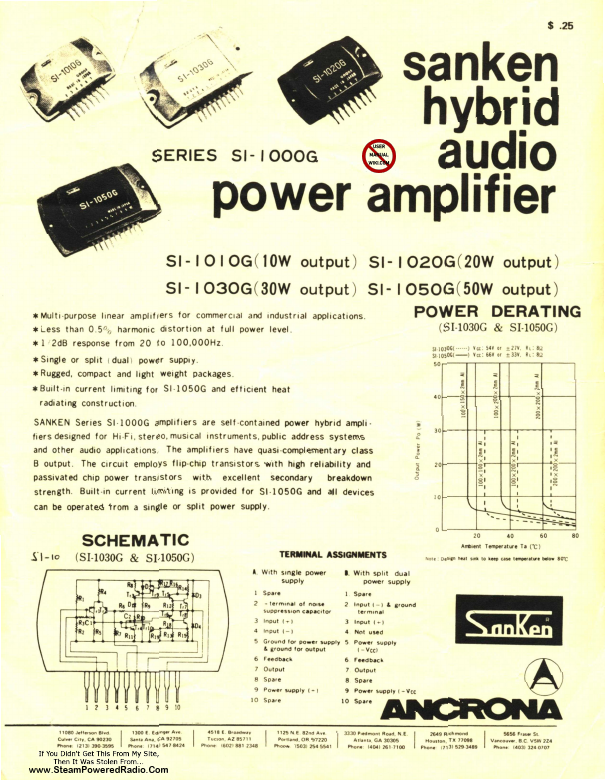

$ .25 - sanken hybrid SERIES SI - I OOOG audio power amplifier 5 1- IO I OG ( 1OW output ) SI - I 020G ( 20W out put) - I 030G ( 30W output ) S I- I OSOG ( 50W output) - Multi -purpose linear ampl1f1ers for mercial and industrial appl1cat1ons . - Less than 0 .5°1, harmonic d1stort1on at full power level. - 1 2d B response from 20 to 100,000Hz. - Single or split ( dual ) power supp Iy . - Rugged, pact and light weight packages . - Built -in current llm,t1ng for Sl -1050G and efficient heat radiating con st ruction . SANK EN Series SI -1000G amplifiers are self-contained power hybrid ampli - tiers designed for H1 -F 1, stereo, musical instruments, public address systems and other audio appl,cat,ons . The amplifiers have quasi -plementary class B output . The circuat employs flip-chip transistors with high reliability and passivated chip power transistors with excellent secondary breakdown strength. Built -in current limiting Is provided for Sl -1050G and all devices can be operated from a single or split power supply. POWER DERATING (S I-1030G Sl-1050G ) SI IOJOG( ... - - ) cc 54 or 27 . Rl : 8U SI 1050G(-) Vee: 66V or _ JJV Rl: 8Q so---------.---.....-----, c c 40 i" 30 a0 . a0 . ~ -; .C..>.. C> 0 g C> :=:: :c...
