FMG-14R Datasheet (Ultra-Fast-Recovery Rectifier Diodes)

Part: FMG-14R
Manufacturer: Sanken (official site)
Size: 143.09 KB

Related Sanken Datasheets

Part Number	Description
FMG-14S	Ultra-Fast-Recovery Rectifier Diodes
FMG-12S	Ultra-Fast-Recovery Rectifier Diodes
FMG-13R	Ultra-Fast-Recovery Rectifier Diodes
FMG-13S	Ultra-Fast-Recovery Rectifier Diodes
FMG-22R	Ultra-Fast-Recovery Rectifier Diodes

FMG-14R Description

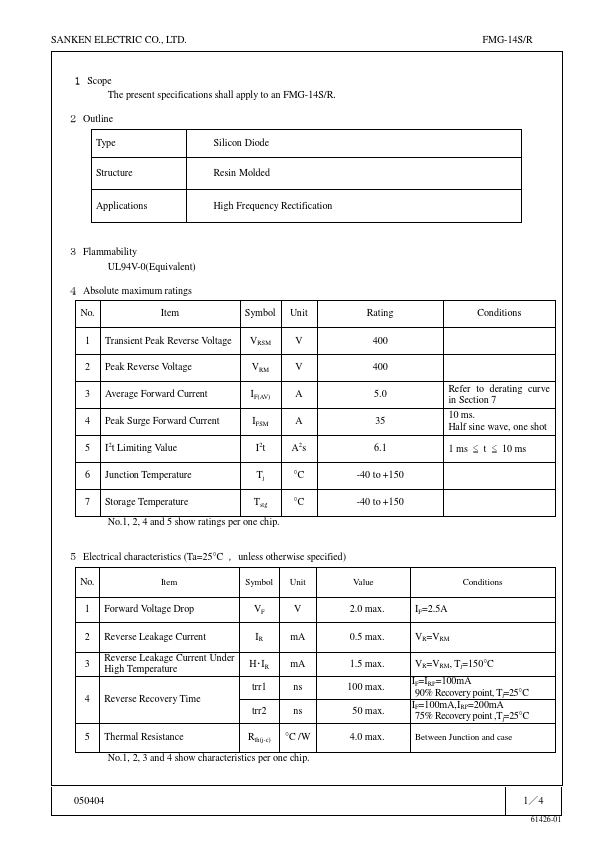

SANKEN ELECTRIC CO., LTD. １ Scope The present specifications shall apply to an FMG-14S/R. ２ Outline Type Silicon Diode Structure Resin Molded Applications High Frequency Rectification FMG-14S/R ３ Flammability UL94V-0(Equivalent) ４ ratings No.
