LA1823M - Single-Chip Tuner

General Description

and Quiescent Voltage at VCC = 4.5V Pin number Function Quiescent voltage (V) AM FM Remarks 1 AM-RF input 1.2 1.2 Connect the AM antenna coil between this pin and pin 2 (Reg) Equivalent circuit 2 1 2 Reg 1.2 1.2 2 3 AM-OSC 4.5 4.5 Connect the AM oscillator coil between this pin and pin

Key Features

  • AM, FM frontend/IF and MPX integrated in a single-chip.
  • Built-in MPX VCO circuit.
  • Electronic tuning (AM oscillator output, AM/FM IF output).
  • Adjustment-free FM detection (uses a ceramic discriminator).

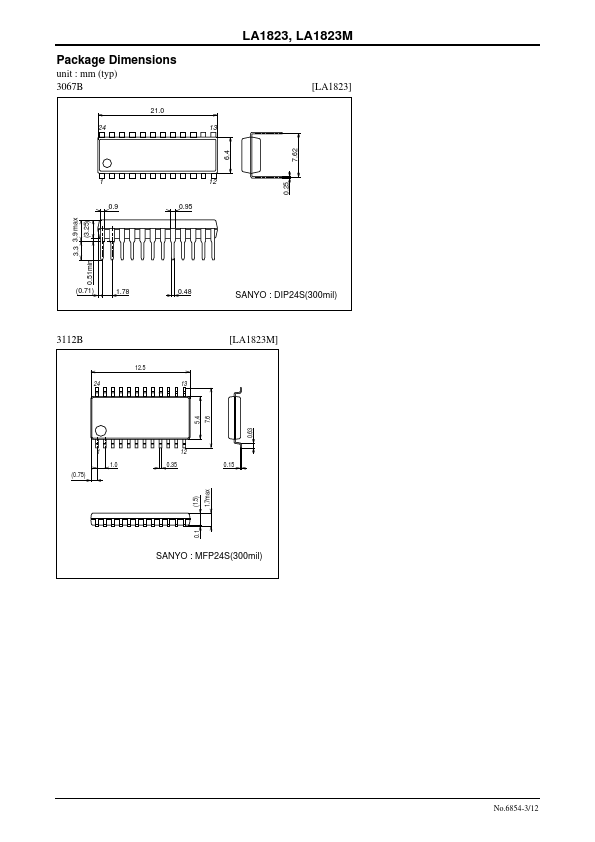

  • Packages : DIP24S (300mil) [LA1823] MFP24S (300mil) [LA1823M] Functions AM : RF amplifier, mixer, oscillator, oscillator buffer, IF amplifier, detector, AGC, IF count buffer output. FM-RF : RF amplifier, mixer, and oscillator. FM-IF : IF amplifier, q.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LA1805 AM / FM-IF / MPX Tuner System Sanyo
LA1810 AM/FM/MPX Tuner System Sanyo
LA1836 Single-Chip Home Stereo Electronic Tuning IC Sanyo
LA1836M Single-Chip Home Stereo Electronic Tuning IC Sanyo
LA1837 Monolithic Linear IC Sanyo

Other Datasheets by SANYO (now Panasonic)

Part Number Description
LA1845NV Single-Chip Home Stereo IC
LA1363 (LA1362 - LA1365 / LA1357) MONOLITHIC LINEAR IC
LA1365 MONOLITHIC LINEAR IC
LA1776M Monolithic Linear IC Single-Chip Tuner IC

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

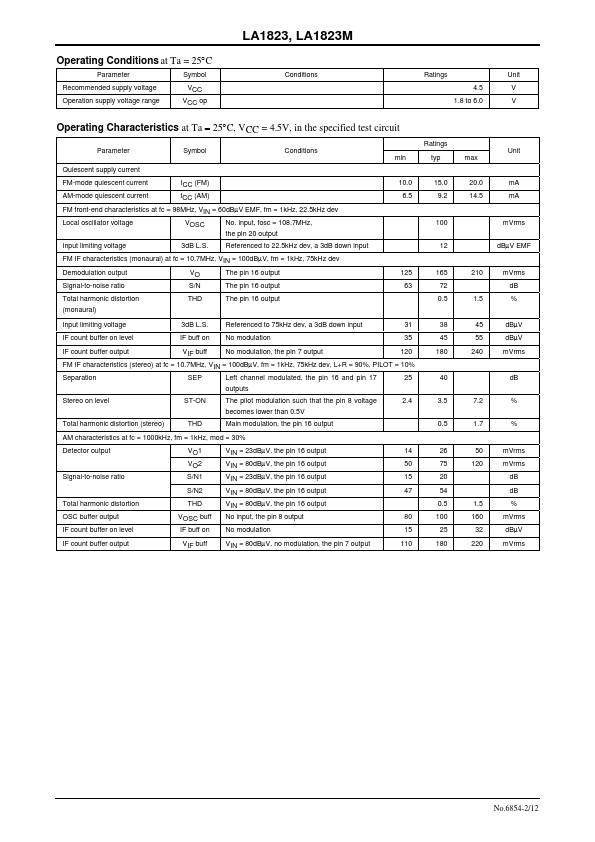

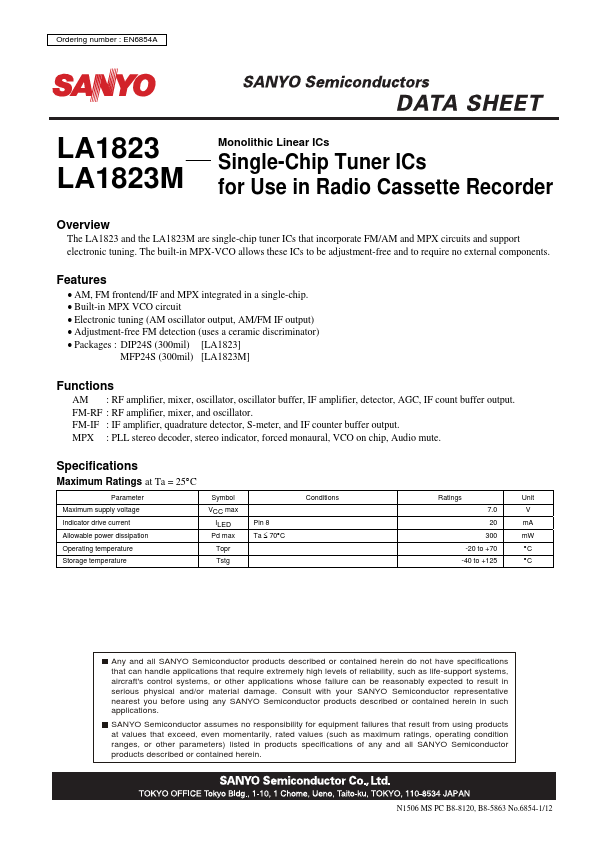

Ordering number : EN6854A LA1823 LA1823M Monolithic Linear ICs Single-Chip Tuner ICs for Use in Radio Cassette Recorder Overview The LA1823 and the LA1823M are single-chip tuner ICs that incorporate FM/AM and MPX circuits and support electronic tuning. The built-in MPX-VCO allows these ICs to be adjustment-free and to require no external components. Features • AM, FM frontend/IF and MPX integrated in a single-chip. • Built-in MPX VCO circuit • Electronic tuning (AM oscillator output, AM/FM IF output) • Adjustment-free FM detection (uses a ceramic discriminator) • Packages : DIP24S (300mil) [LA1823] MFP24S (300mil) [LA1823M] Functions AM : RF amplifier, mixer, oscillator, oscillator buffer, IF amplifier, detector, AGC, IF count buffer output.
