LC7232-8291 Description

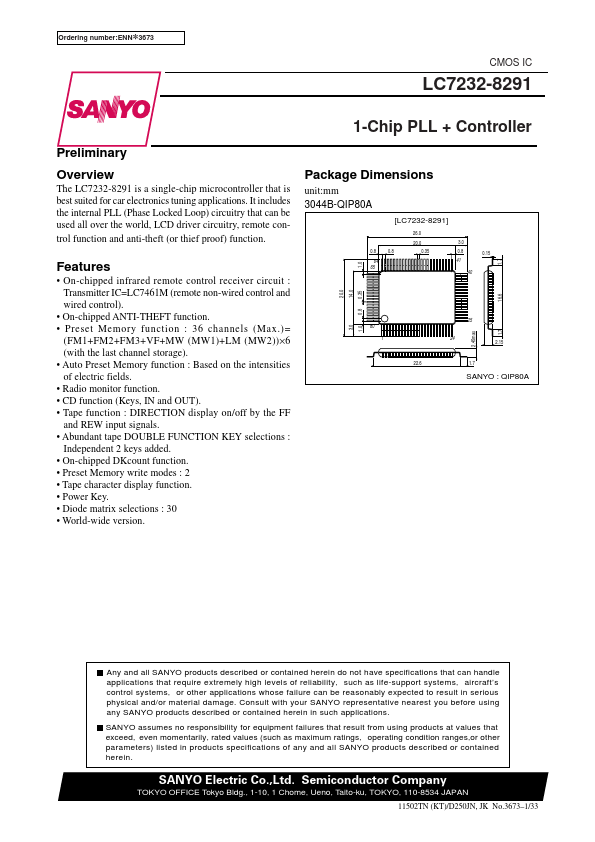

Ordering number:ENN 3673 CMOS IC LC7232-8291 1-Chip PLL + Controller Preliminary Overview The LC7232-8291 is a single-chip microcontroller that is best suited for car electronics tuning applications. It includes the internal PLL (Phase Locked Loop) circuitry that can be used all over the world, LCD driver circuitry, remote con- trol function and anti-theft (or thief proof) function.
LC7232-8291 Key Features
- On-chipped infrared remote control receiver circuit : Transmitter IC=LC7461M (remote non-wired control and wired control
- On-chipped ANTI-THEFT function
- Preset Memory function : 36 channels (Max.)=
- Auto Preset Memory function : Based on the intensities of electric fields
- Radio monitor function
- CD function (Keys, IN and OUT)
- Tape function : DIRECTION display on/off by the FF and REW input signals
- Abundant tape DOUBLE FUNCTION KEY selections : Independent 2 keys added
- On-chipped DKcount function
- Preset Memory write modes : 2
